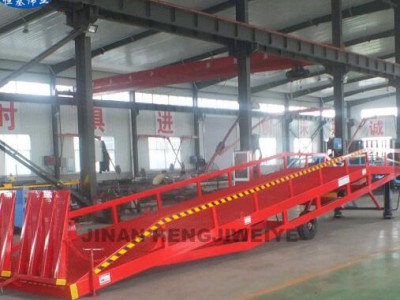

Adjustable Mobile 5-15t warehouse hydraulic yard ramp container dock ramp mobile loading ramp for forklift
Introduction
HJWY Mobile ramp is CE certified. It is designed 6000-1500kg load capacity. It is customer-friendly;and one man can operate it. With galvanised steel grating bearing bars,our mobile cock ramp can be used in all weather conditions,like snow,slush,and rain. Bracket,safety chain,safety side barrier or curb...the system has enhanced safety properties.
Key Features
1.All-hydraulic drive,easy operation
2.Lip plate is connected to the leveler with long axis,high-strength and reliable
3.imported sealing part to guarantee good sealing performance of hydraulic system
4.High strength U-shape design to ensure big load capacity without deformation
5.Capable of being operated by one person,very flexible
6.Easy maintenance
7.CE Certificated
Parameters
|
Model |
Load (t) |
Main beam |
Vice beam |
Guard rail |
Platform plate (mm) |
Solid tire |
Cylinder |
Lip plate (mm) |
Weight (kg) |
|
DCQY6-1.8 |
6 |
160*80*4 |
100*50*3 |
40*60*3 |
3 |
600-9 |
Φ80*2 |
14 |
2450 |
|
DCQY8-1.8 |
8 |
160*80*4 |
100*50*4 |
40*60*3 |
3 |
600-9 |
Φ80*2 |
14 |
2650 |
|
DCQY10-1.8 |
10 |
160*80*5 |
120*60*4 |
40*60*3 |
4 |
600-9 |
Φ80*2 |
14 |
2850 |
|
DCQY12-1.8 |
12 |
200*100*5 |
120*60*5 |
40*60*3 |
5 |
700-9 |
Φ80*2 |
16 |
3350 |
|
DCQY15-1.8 |
15 |
250*100*6 |
160*80*5 |
40*60*3 |
6 |
700-9 |
Φ80*2 |
20 |
4500 |
documentations and Certificates
1.Detailed drawing listing dimensions for every part is available.
2.CE and ISO certificate are available.
3.Catalogue is available.
Packing and shipment
1.We load 3pcs in one 40ft container for the maximum utilization of container .We detach the wheels for the two top pcs and leave the bottom one complete set.
2.Loading and unloading proposal will be provided to ease your unloading when goods arrived at your end.
Our Service
1. Service concept: Attention to contract, guarantee quality, on time delivery and keeping promises.
2. Presale service: Provide the detailed technical advice for free, according to the needs of customers, to discuss the most suitable product ordering scheme.
3.Quick responses: We have a complete services network, 24-hours hotline, we will help you to solve the problem in the shortest possible time.
Our company
Over the years,HJWY has been providing strong expertise in the manufacturing of aerial work platforms in jinan,where the origin and biggest production base of lifting industry initialized as early as1972.
HJWY has achieved a reptation as being a reliable partner within the international market place for aerial work platforms.Our product range varies from scissor lifts,loading ramp,aluminum alloy lifts,car lifts,dock leveler,totally more than 20types.
HJWY is TUV,CE and ISO9001 certified.Extra-special attention is paid to quality,service and reliability at each step of the process from engineering,purchasing,and assembly,to the testing and final approval.
