Manual Movable Mobile Electric Scissor Lift 10m 500kg供应产品Jinan Hengji Weiye Machinery Equipment Co., Ltd.

Quick Details

Applicable Industries:: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Construction works , Energy & Mining

Place of Origin:: Shandong, China

Brand Name:: Hengji Weiye

Lift Mechanism:: Scissor Lift

Lift Drive / Actuation:: Hydraulic

Power:: 2.2kw

Min. Lifting Height:: 1m

Table Size:: 2100*1230mm

Overall Dimensions:: 2260*1440*1610mm

Weight:: 1360kg

Certification:: ISO

Warranty:: 1 year

After-sales Service Provided:: Engineers available to service machinery overseas

Product name:: Manual Movable Mobile Electric Scissor Lift 10m 500kg

Application:: Aerial Construction Work

Type:: Scissor Hydraulic Lift

Color:: Customers' Requirements

Material:: High Strength Steel

Keywords:: china home elevator scissor lift trailers for sale

Usage:: Lift Workers

Name:: Manual Movable Mobile Electric Scissor Lift 10m 500kg

Feature:: Easy Operation Safety Convenience

Supply Ability

Supply Ability:: 600 Set/Sets per Year Manual Movable Mobile Electric Scissor Lift 10m 500kg

Packaging & Delivery

Packaging Details: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Manual Movable Mobile Electric Scissor Lift 10m 500kg

Port: Qingdao Port

Product Description

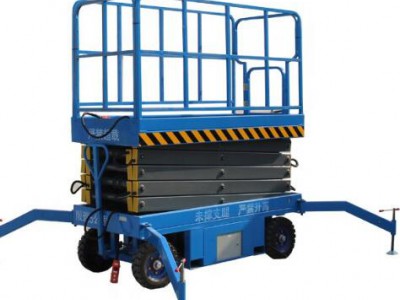

Manual Movable Mobile Electric Scissor Lift 10m 500kg

Product Application

Mobile scissor lift usually takes Shanghai Baosteel And jinan jisteel mananese steel rectangular tube production
The elevating power for the platform is single-phase 220v AC power or three-phase 380v AC power.
Mobile scissor lift control has two ways: manual and electric. Manual pump is equiped for the use in case power is cut off.
Mobile scissor lift has the following characteristics:flexibly-moving platform, smooth elevation and easy operation.
Mobile scissor lift heights: ranging from 4m, 6m, 8m, 10m, 12m, 14m, 16m, 18m, 20m.(13feet-66feet)

Manual Movable Mobile Electric Scissor Lift 10m 500kg

Product Parameters

MODEL NUMBER	SJY0.5-4	SJY0.5-8	SJY0.5-10	SJY1.0-6	SJY1.0-14
LOADING WEIGHT	500KGS	500KGS	500KGS	1000KGS	1000KGS
PLATFORM SIZE	2100x830MM	2100x930MM	2100x1230MM	2100x1200MM	2812x1600MM
LIFTING HEIGHT	4M	8M	10M	6M	14M
OUTSIDE DEMENSION	2250x950X1100 MM	2250x1060X1380 MM	2250x1350X1530 MM	2250x1350X1300 MM	3067x1810x1900 MM
TOTAL WEIGHT	800KGS	1050KGS	1360KGS	1400KGS	2765KGS
POWER	2.2KW	3.0KW	3.0KW	3.0KW	3.0KW
