  CURRENT POSITION: HOME  >PRODUCTS CENTER > product detailed information
Nail wood pallet crusher machine
Number of visits： 94
Unit Price： Face to face
Minimum Ordering：
Total supply：
period for dispatch： Delivery within 3 days from the date of buyer's payment
Valid until： Long-term effectiveness
Last update： 2020-01-15 15:12
Product Details

Quick Details
Production Capacity:
20-35 TPH
Power Type:
Electric
Dimension(L*W*H):
9.6m x 2.6m x 3.1m
Place of Origin:
Shandong, China
Brand Name:
HX
Model Number:
HX1400-800
Type:
Wood Chipper
Weight:
26000 KGS
Certification:
CE ISO
Use:
wood pallet crusher machine process wood pallets
Condition:
New
Name:
wood pallet crusher machine
Model:
HX1400-800
Rotor diameter:
1050mm
Rotation speed:
900rpm
cutter quantity:
customized
Screen size:
60-100mm
Main motor power:
250kw
Feeding motor power:
11+7.5kw
Discharging motor power:
11+5.5kw
Hydraulic motor:
4kw
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
1 Year
Supply Ability
Supply Ability:
10 Unit/Units per Month wood pallet crusher machine
Packaging & Delivery
Packaging Details
1x40'FR for wood pallet crusher machine main machine
1x20'GP for wood pallet crusher machine auxiliary equipments
Port
Qingdao
Lead Time :
30days after payment

Application
   Feedstock

   Output

Specification
name
wood pallet crusher machine
Model
HX1400-500
HX1400-700
HX1400-800
rotor diamter (mm)
800
960
1050
cutter quantity (piece)
  24 or customized
24 or customized
24 or customized


power (kw)
feeding 11+7.5
feeding 11+7.5
feeding 11+7.5
main 200
main 200
main 200
discharge 11+4
discharge 11+5.5
discharge 11+5.5
hydraulic 3
hydraulic 4
hydraulic 4
input conveyor (mm)
4
6
6
output conveyor (mm)
10
10
10
input size (mm)
1400-500
1400-700
1400-800
capacity (TPH)
15-20
20-25
20-30
weight (ton)
20
22
24
dimension (m)
7.3 x 2.6 x 2.6
9.6 x 2.6 x 3.1
9.9 x 3 x 3.3
Detailed Images


Name: feeding conveyor

Feature:

   link-joint type

   matrial is high manganese steel

   long service life

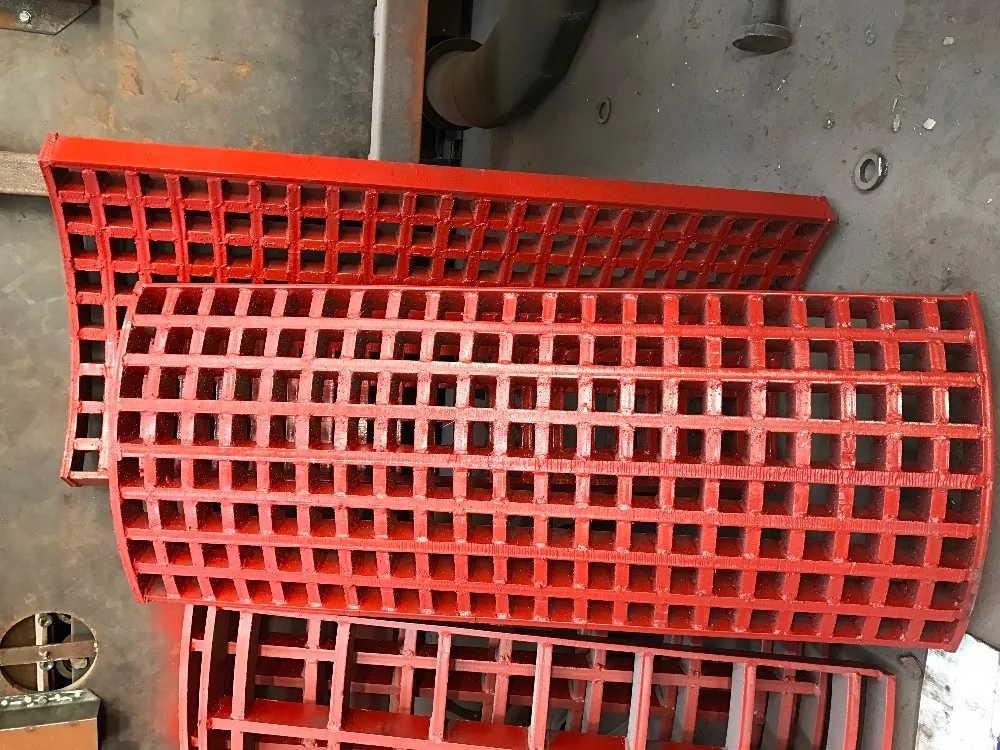

Name: Screen
Feature:
   high strength steel,
   stereoscopic welded,
   more durable



Name: hammer
Feature
   material  is alloy YT15,

   long service life

   easy for change

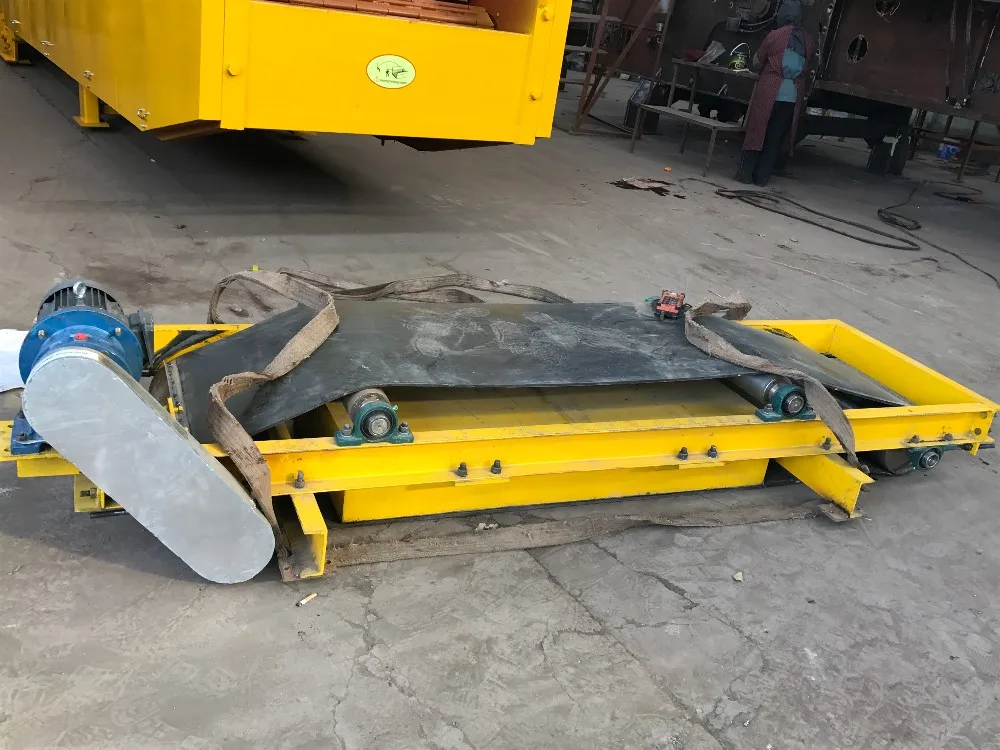

Magnetic roller

   high magnetic

   long service life

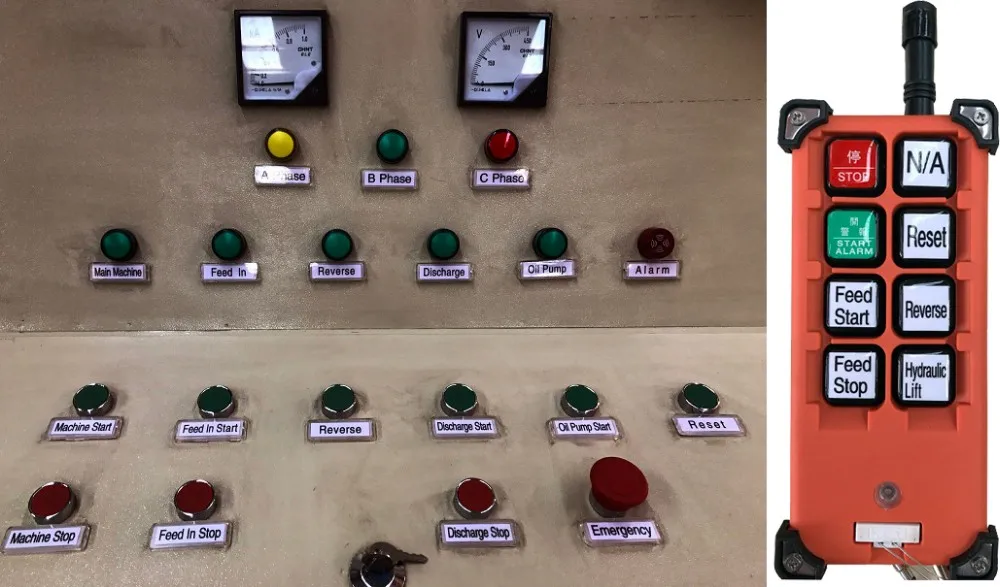

Name: Control cabinet

Feature
    high frequency control
   easy oepration
   high safety



Name: Hydraulic system

Function

   easy for checking and replacing of cutter, screen,etc

   adjust feeding roller to adopt wide range raw material

Remove Nail

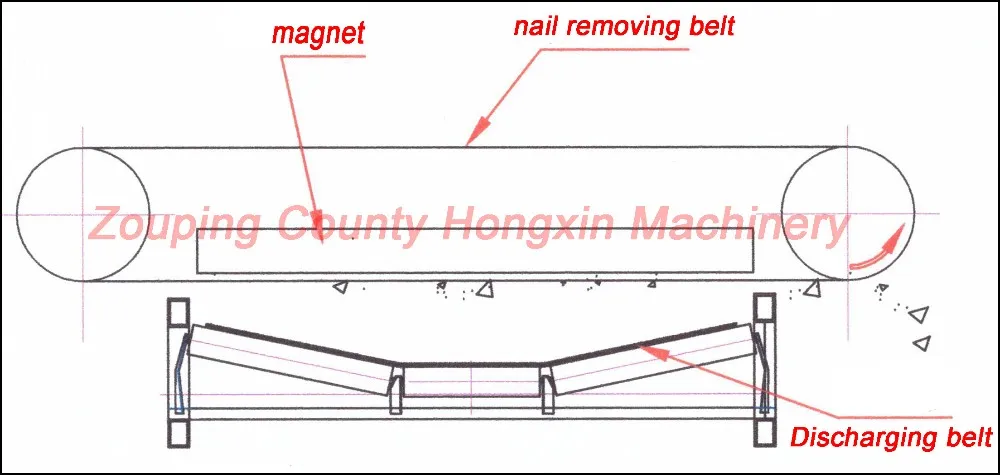

      Working principle

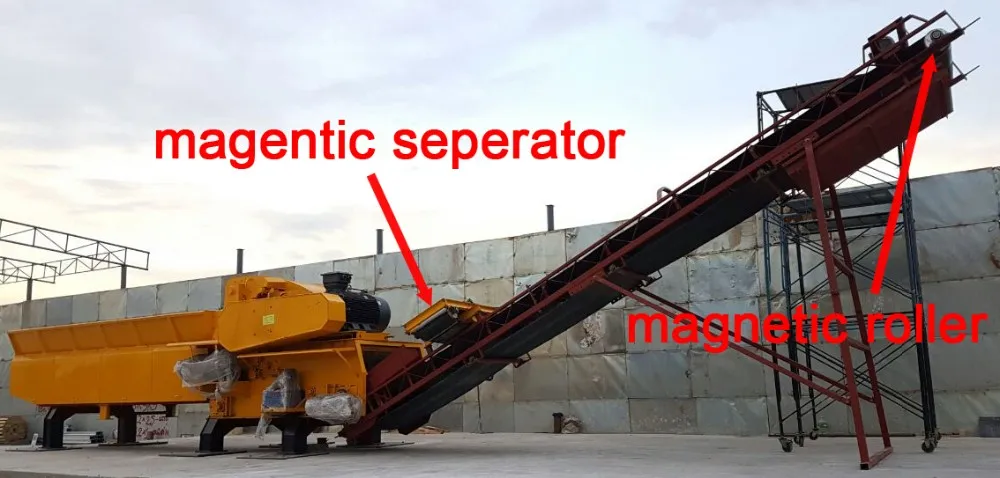

      Installation location

      Removed nails

Packing & Delivery
    1x40'FR + 1x20'GP
Video center
   Video link
        1. http://v.youku.com/v_show/id_XMTg4NDAyNTI2OA
      2. http://v.youku.com/v_show/id_XMTgyNjg5NTkwMA
   Working site
about us

   Manufacturing Equipments

  Partners

   China Energy Conservation and Environmental Protection Group

   Guoneng Biomass Power Plant

   Kaidi Biomass Power Plant

   ......

   Certifications
