150crate/ 300crates/600crates/800crates/h Industrial Automatic Plastic Washer For Food Factory
Number of visits： 71
Unit Price： Face to face
Minimum Ordering：
Total supply：
period for dispatch： Delivery within 3 days from the date of buyer's payment
Valid until： Long-term effectiveness
Last update： 2020-01-18 08:36
Product Details

Quick Details
Warranty:
1 Year
Place of Origin:
Shandong, China
Brand Name:
Huayu
Model Number:
Plastic Washer-001
Dimension(L*W*H):
1380*1200*2000mm
Power(W):
15.37kw
Weight:
500kg
Type:
cleaning washer, Cleaning Washer
Condition:
New
Certification:
ISO SGS
Voltage:
220V/380V, 380V/220V
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Retail, Energy & Mining, food proccessing
After-sales Service Provided:
Engineers available to service machinery overseas, Free spare parts
Product name:
Industrial Automatic Plastic Washer
Application:
Food Industry
Function:
Washing Sterilizing
Feature:
Critical Cleaning / Residue Free
Fuel:
Electric
Color:
Customized Color
Model:
Plastic Washer-001

Packaging & Delivery

Selling Units:
Single item
Single package size:
500x100X175 cm
Single gross weight:
500.0 kg
Package Type:
packaging&shipping
seaway packaging
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated

Product Description
The machine is made of SUS304 stainless steel material, which integrates cold and hot water cleaning and disinfection. It can replace the traditional manual cleaning operation and meet the requirements of a large number of turnover boxes for different food enterprises. The cleaned box is fed into the machine through the conveyor belt.
1. In the first stage of cleaning, the hot water of 38°C-45°C (temperature adjustable) is transported to the three-dimensional spray pipe through the circulating water pump, and then the tank is made by the detachable 48 spray heads. Three-dimensional flushing and cleaning, the washing water can be discharged into the sewage pipe network or filtered and recycled.
2, in the second cleaning, use 75 ° C -82 ° C (temperature adjustable) hot water through the sanitary circulating water pump to the three-dimensional set of spray pipe, and then through the fixed 26 sprinkler head to the box The three-dimensional flushing cleaning is performed, and the washing water is filtered and then flows into the circulating water tank for recycling.
3. In the third stage of rinsing, spray the water around the tank or the iron pan with water spray. The sprayed water flows into the second circulating water tank for reuse.The tank level and water temperature are automatically designed to minimize energy consumption. The main part of the casing is detachable for easy maintenance. The pipe is snap-fitted for easy pipe cleaning and reliable operation.
Name
150CRATE/ 300CRATES/600CRATES/800CRATES/H PLASTIC CRATE WASHER FOR FOOD FACTORY
size

5000*1000*1750mm
power
15.37kw
Warranty
1year
Function
Washing Sterilizing
Weight
800kg/h

product details

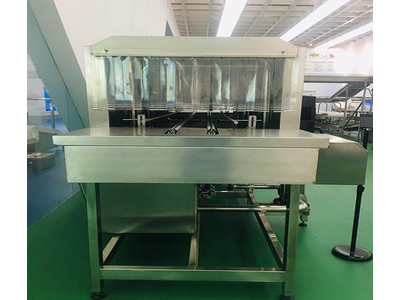

Picture of each part of the machine
Detailed Images
Cleaning of various size turnover boxes
Related Products
Packing&Shipping
Wooden crates suitable for export
After Sales Service
1. Install and debug products for consumers on behalf of consumers;
Diversified servicesDiversified services
2. According to the requirements of consumers, carry out technical guidance on the use and other aspects;
3. Guarantee the supply of spare parts for maintenance;
4. Responsible for maintenance service, and provide regular maintenance and regular maintenance;
5. Provide regular telephone return visits or home visits to consumers;
Company Introduction
Shandong Huayu Machinery Equipment CO., Ltd
Main products:
Shandong Huayu Machinery Equipment CO., Ltd, located in Boxing with convenient transportation access, is a modern, professional, international and large-scale manufacturer and exporter.
And we have three professional companies to produce slaughtering equipment, cold storage room and other stainless steal workshop products so that we can provide a total service according to your demand. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production make us to
guarantee total satisfaction of the customers. Besides, we have received ISO 9001:2008, CE, HALAL.
Certifications
FAQ

Our Services & Strength

1,Technical experience
State of the art systems and solutions
2,Industry experience
We have more than 20 years of industry experience

3,Customer responsiveness
All of the customer's various needs and rewards will be highly valued and strive to help customers achieve.

4,After-sales service capability / continuous expansion
While ensuring that customers use the existing system normally, paying attention to the potential needs of customers and the gradual expansion of the entire system.

5,capabilityTeam Advantage
Efficient and passionate professional team
