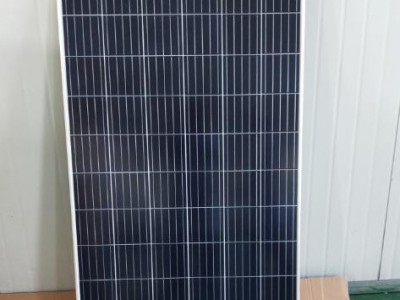

Qingdao High Efficiency Polycrystalline And Mono PV Solar Panel
Number of visits: 60
Unit Price: Face to face
Minimum Ordering:
Total supply:
period for dispatch: Delivery within 3 days from the date of buyer's payment
Valid until: Long-term effectiveness
Last update: 2020-04-26 10:31
Product Details
 Quick Details
Place of Origin:
shandong,China
Brand Name:
jydj, JOYSOLAR
Model Number:
mono, JYSP-350M
Size:
1956*992*40
Panel Efficiency:
21
Certificate:
CE
Warranty:
25
Type:
Standard Solar Panel
Solar Cell:
Mono 156*156 Cell
Soldering:
Automatic series welding machine
Glass:
3.2mm High transmission
frame:
Anodized Aluminium Alloy
frame Color:
Silvery or Black
Connector:
Standard Compatible Connector
OEM Order:
Acceptable
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
2 pieces/carton
Port
qingdao port
Picture Example:
package-img

package-img
Lead Time :
Quantity(Watts) 1 - 316 >316
Est. Time(days) 15 To be negotiated
Solar Modules
JYSP-340M
JYSP-345M
JYSP-350M
Maximum Power (Pmax)W
340
345
350
Tolerance
±5%
Maximum Power Voltage (Vmp) V
37.7
37.9
38.1
Maximum Power Current(Imp) A
9.02
9.11
9.19
Open Circuit Voltage (Voc)V
46.4
46.5
46.6
Short Circuit Curretn(Isc)A
9.56
9.61
9.65
Module Efficiency
17.5
17.8
18.0
Encapsulation
Glass/EVA/Cells/EVA/TPTGlass/EVA/Cells/EVA/T
Size and number of cells
156mm X 156mm 72/6*12pieces
Max.syst.Oper.Voltage V
1000V DC
Dimension mm
1956x992x40
Weight kg
22.5kg
Operate Temp Scope
-40 / 85℃
Relative humidity
227g steel ball fall down from 1m height and 60m/s wind
Warranty
Pm is not less than 90% in 10 years and 80% in 25 years.
Product Description

Solar Cells

--High efficiency 5BB or 12BB PV cell
--Even weak light, still keep maximum output
--Uniform color
--Anti-PID
--Germany standard Cell

Tempered Glass

--Low iron tempered glass (white glass)
--3.2mm or 4mm thickness
--Antireflective glass
--Translucency of normal luminance is increased 2%
--resists UV light radiation



frame

--Aluminum alloy frame
--Silvery and black color
--thickness of surface oxidation layer is more than 10 micron
--thickness 30/35/40/45/50mm
--stress test
--ensure 25 years service life

Junction Box

--Conventional standard edition
--Quality diode ensures safety
--Adding anti-aging agent
--Resist UV radiation agent
--Long service life

1) Long lifetime: more than 25years,less power decrease.
2) Good performance of preventing from atrocious weather such as wind and hails.
3) Resisting moisture and etching effectively, not effect by geology.
4) Warranty:2 year product warranty, and Pmax is no less than 90% in 10 years and 80% in 20 years.
5) Tolerance:+/-5%, solar cell's efficiency can get to above 16%.

1.Sorting

Pick out good quality, complete battery pieces for string weldings.

2.Welding

String creation by interconnecting the single photovoltaic cells, then interconnection of the strings in order to create an electrical circuit.



3.Lamination layer

Automatic pick up, rotation and positioning of the strings welding to the glass with high quality encapsulant material.

4.EL Test

EL test is able to highlight information that normally is not detectable with visual inspection, power measurement or IR testing, it is possible to identify micro cracks, degradation and shunted area on cells.

5.Lamination

During this process, the encapsulant material cures and the muti-layer sandwich becomes one unit.

6.Trimming and Framing

Removals of surplus material along the sides, then install the aluminum frame around the module

Installation&Project

*Joysolar offers detailed installation instructions and videos.

*For larger projects, Joysolar can provide onsite installation training and technical assistance

On grid solar project,
off grid whole solar power project,
solar power plant project,
10kw-1.4Mk
Joysolar have supported many good and stabel projests to customers and goverment
.
Packing & Delivery
Our company

Established in 1984, specializes in developing and manufacturing customized solar powered lighting systems for a wide range of lighting applications. It currently owns its own manufacturing plants with a total area of 40,000 square meters, with multiple workshops for the production of solar panels, lamp poles, and LED lights. The plants have an annual manufacturing capacity of 15,000-20,000 sets.

Trade Assurance Service:

12 Year GOLD supplier in Alibaba.
-Our company are a member of Trade Assurance service in alibaba, the assurance value is USD91000.00 now. Which can provide buyers with a number of trade safe guards protect buyers payment to suppliers, and to ensure suppliers fulfill.


The Most Competitive Price:

- As one of the leading manufacturers of solar outdoor lights , JoySolar engineering team designs the most economic solar street lights in many aspects (such as production cost, transportation cost, installation cost and maintainance cost ).
- JoySolar' solar outdoor lights with the most reasonable configurations and the best components sells solar lights at the most favorable prices in the industry.


Customer Service:

- JoySolar offers you excellent customer service with highly competitive prices.
- Our sales and service team in China will provide you with attentive service along with durable and dependable solar light
