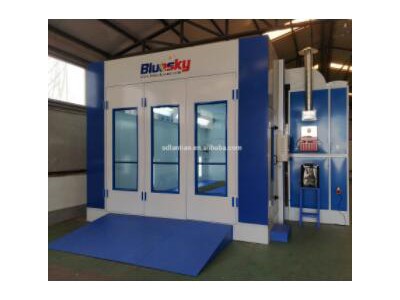

BSH-SP9200A car paint spray baking booth
Paint Booth Dimensions:
|
Dimensions: |
Length(mm) |
Width(mm) |
Height(mm) |
|
External Size |
7,050 |
5,250 |
3,600 |
|
Internal Size |
6,900 |
3,900 |
2,750 |
|
Entrance Door |
Adopt with handle and lock |
3,000 |
2,700 |
|
Operatior’s Door |
Adopt with handle and Anti-Explosion |
800 |
2,000 |
Features of paint booth:
|
Features: |
Total power 14.5 kw; 380V/3ph/50hz; Noise < 80db |
|
I. Wallboard |
Adopt high quality fireproof insulation EPS panel, thickness: 75mm (Rockwall optional) |
|
II. Foundation System |
Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates, the grids are twisted steel for the cross bar steel grating. Galvanized and beautiful, durable and better force bearing. |
|
III. Heating System |
Adopt one unit of Italy Riello diesel burner G20 (Gas burner and Electrical heating optional); One set of heat exchanger, high efficient heat-resistant stainless steel as cycling ; 4-6 minutes (from 20-60℃) underbaking status, max baking temperature is 80℃; One unit of Cabinet(Rock-wool insulation), Two pcs Air ducts. |
|
IV. Filtration System |
Pre-filters Can Capture Granules Larger than 10μm; Ceiling filter can Capture Granules Bigger than 4μm. Floor filter multilayer glass fiber, air cleanliness in room can reach 98% |
|
V. Light System |
Ceiling light, 8 group×4pcs = 32pcs×36w; Bottom light, 8 group×4pcs = 32pcs×36w; With light fixture, anti-explosion design. |
|
VI. Ventilation System |
Air -inlet fan 2 sets×4 kw, Centrifugal; Air -outlet fan 1 set 4 kw, Centrifugal; Air flow speed in cabin 0.30m/s. One set of Painting and baking exchange system One set of Cabinet for the fans and three pcs air ducts |
|
VII. Control Panel |
One unit, including spray switch, baking switch, emergency stop, etc. (Micro-Computer Programme controlling optional) |
|
VIII. Other Include |
All sets of hardware, fasteners and sealants |
Paint booth Detailed Pictures
Standard exporting package, all part use foam or carton as package, keep our spray baking booth parts from damage.
