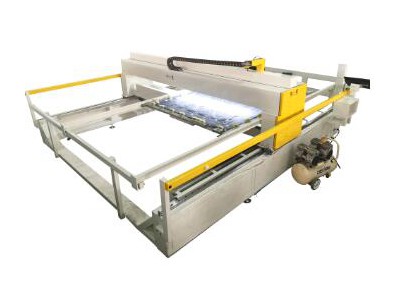

Main features:
1.15-inch industrial integrated touch screen
2.Intelligent, networked
3.Y-direction rack and pinion transmission,higher precision.
4.X-direction to 8M belt transmission.
5.The head and the frame are oil-free,prevent the cloth from having oil.
6.Y-direction uses 35 square rails for better stability.
7.The highest speed is 3800 rpm,continuous working speed throughout the day is recommended 2600-3200 rpm
8.Automatic lift head,after quilting a bed of material,the head is raised automatically,easy replacement of new material frame
9.Customized sewing machine head
10.Japan Mitsubishi servo motor,provide powerful and accurate driving force
|
Model |
QY-S260 |
QY-S280 |
QY-S300 |
QY-S320 |
QY-S350 |
||||
|
Max Quilt Size |
2.6m*2.8m |
2.8m*3.2m |
3.0m*3.2m |
3.2m*3.5m |
3.5m*3.5m |
||||
|
Max Needle Drop Size |
2.4m*2.6m |
2.6m*3.0m |
2.8m*3.0m |
3.0m*3.3m |
3.3m*3.3m |
||||
|
Head |
Single head,single needle,Double-line lock stitch, big hook |
||||||||
|
Needle |
GROZ |
||||||||
|
Sewing Thickness |
1200g/m²(max) |
1000g/m²(max) |
|||||||
|
Sewing Speed |
500-3800 needles per minute |
||||||||
|
Needle Distance |
1-20mm(adjustable) |
||||||||
|
Dimension(L*W*H) |
3.45m*3.4m*1.4m |
3.75m*3.6m*1.4m |
3.95m*3.8m*1.4m |
4.15m*4m*1.4m |
4.35m*4.3m*1.4m |
||||
|
Voltage |
AC220V, 50HZ, 1KW |
||||||||
|
Weight |
1800KG |
1900KG |
2000KG |
2200KG |
2300KG |
||||
1.The machine is guaranteed for one year.
2.We can arrange engineer to debug and install for customers.
1.How long does the machine guarantee?
We guarantee one year for non-human damaged factor.
2.After service?
Engineers available to come to your factory for supplying training and installation.
3.How to control the quality?
We have professional Engineer and inspector make sure that each part of machine working well before shipment.
4.How to contact you?
You could contact us via TM, Skype, Whatsapp, Wechat, QQ, Email
5.What about payment term?
T/T, Western Union, Paypal, Cash, L/C, Trade Assurance, etc..
6.Are you a manufacturer or Trade company?
We are a professional manufacturer holding our own International Trade Department,for that we can better understand customer's needs and offer a reasonable price.
If any other question please don’t hesitate to contact us any time...
