PIR/ PUR/ PU fire retardant freezing room composite panel no CFCs for fresh供应产品Shandong Hongxinyuan Coated Steel Co., Ltd.

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Headstream

Model Number:: PIR/PUR/PU Sandwich Panel

Panel Material:: metal

Product name:: PIR PUR PU fire retardant freezing room sandwich panel no CFCs

Color:: any color as your request

Thickness of PIR/PUR/PU core:: 50/75/100/120/150/200mm

Steel thickness:: 0.4mm-0.8mm

PIR/PUR/PU denstity:: 40kg/m3-50kg/m3

THERMAL CONDUCTIVITY:: 0.063~0.019

oxygen index:: 29%-34%

Supply Ability

Supply Ability:: 100000 Square Meter/Square Meters per Month

Packaging & Delivery

Packaging Details: standard exporting package

Port: tianjin or qingdao port

Lead Time :

Quantity(Square Meters)	1 - 10000	>10000
Est. Time(days)	15	To be negotiated

Product Description

PIR/ PUR/ PU fire retardant freezing room composite panel no CFCs for fresh

PIR/ PUR/ PU fire retardant freezing room composite panel no CFCs for fresh is composed of two galvanized stee sheets and rigid polyurethane foam in the middle. Because the polyurethane cold room panel has several outstanding advantages, such as thermal insulation, waterproof, light weight and fast installation, It has been widely used as the building material of cold storages, cool rooms, clean rooms, free-dust workshops and exterior walls in cold places.

At present, Hongxinyuan polyurethane freezing room panel has 10 different thickness:

30,35mm,40mm,50mm, 60mm,75mm, 100mm, 150mm, 200mm,250mm .

Product Parameters

Name	Specification
Density	40-60kg/m3
Effective width	925,1000,1120,1150mm
core thickness	35mm,40mm,50mm,60mm,75mm,100mm,150mm,200mm,250mm
Steel thickness	normal:0.37-0.7mm
Length	According to customer's request, but if container transportation,normal less 11.8m
Color	China blue,China white,as customized
surface material	PPGI steel, GI steel ,PPGL steel ,GL steel,stainless steel304
core material thickness	50mm Temperature 5℃ or above
core material thickness	75mm Temperature 0-5℃
core material thickness	100mm Temperature -10 - -18℃
core material thickness	150mm Temperature -25- -36℃
core material thickness	200mm Temperature -36℃ lower
core material thickness	250mm Temperature -40 - lower

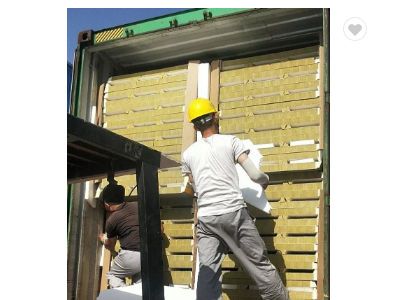

Detailed Images
