Company Information
KAITAI are one Group company :Shandong Kaitai Group Co.,Ltd.
Branch company :Shandong Kaitai Shot Blasting Machinery Co.Ltd is for sand blasting room manufacturing.
Official website:www.kaitaimachinery.com/.
Branch company :Shandong Kaitai Industrial Technologies Co.Ltd is for abrasive manufacturing,its earlier name is:Shandong Kaitai metal abrasive Co.Ltd,and these two names arestill in using.
Official website:www.kai-tai.com.cn/.
Our factory address details is:Kaitai Road,Qingyang Town,Zouping county,Binzhou City,Shandong Province ,China.
If you plan to visit supplier,we invite you visit us ,we are close to Ji’nan International Airport and High speed Rail station ,we will pick you up there if you come.
new product menganese wire mesh QGW shot blast machine/sand blast cleaning machine
Product feature:
1) Net belt structure
2) continuous operation of flat workpiece
3) fully automatic operation
Detailed instroduction:
The net belt shot blasting machine will deliver the workpieces to closed blasting chamber by a net conveyor system, it uses high-speed rotating blast wheel impeller to make shots blasting on surface of workpieces, so that to reach cleaning result. It is one kind of shot blasting equipment to disc shape castings, forging, structure and so on.
1)net belt structure, net be;t processing speed is frequency control, more uniform shot blasting, higher cleaning effect
2)steel net belt, slag skin is easy to leak, heat radiation of workpiece is goof, which can achieve effective cleaning of high-temperature workpieces
3) shots material circulation purification system adopts overflow controllable full multi-grade curtain winnowing separator and special polyester core line elevator belt to achieve separation and recycling of shots .
4) blasting chamber equips with multi-layer sealing curtain which can meet requirement of different workpieces. Shot blasting dust removal system uses impulse back flushing cartridge dust collector, dust removal result is good and service life is prolonged.
Net blet shot blasting machine is mainly used for automobile, aerospace railway and other machine manufacturing industry, especially suitable for the surface of the thin-walled iron castings or aluminum castings and other small parts. It can be used for mechanical parts shot blasting strengthen.

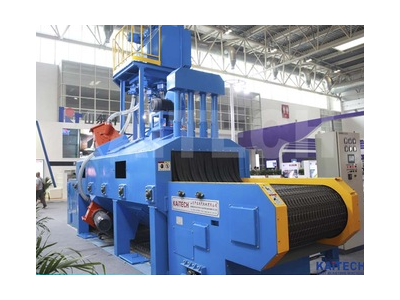

Detailed pictures:
Technical data:
|
Product parameter |
|
|
Item |
Data |
|
Wire mesh belt width |
1250mm |
|
The max lading capacity |
1200KGS |
|
The max workpiece weight |
100KGS |
|
Max workpiece cross section size |
1000x500 mm |
|
Dust removing wind volume |
15000m3/h |
|
Total power |
97.5 kw |
Spare parts:
On the basis of shot blasting machine, we also produce and offer most spare parts for the shot blasting machines. Such as, Blasting wheel assembly, bucket elevator, dust collectors, casting parts including distributors, blades, cntrol cages and guarding boards(protection liners) etc. This will help our clients to save cost and time looking for spare parts.
Application:
Our shot blasting machines are widely used in the metal surface cleaning field. Such as rust removal, sand cleaning, oxide skin cleaning, burnishing and descaling for parts used in the fields of ship building, auto industry, bridge, machinery , auto parts, other casting parts, forging parts, engineering parts etc.
The wire mesh belt shot blasting machine is mainly used for automatic, aerospace railway and other machine manufacturing industry, especially suitable for the surface of the thinwalled iron castings or aluminium castings and other small parts.it can be used for mechanical parts shot blasting machine strengthen.
The product gained CE, ISO9001, ISO14001 and OHSAS18001 with high quality and good production.
Packaging: 1. Small spare parts put in plywood wooden cases
2.Other parts covered with thick film
Shipping: Container transport
Largest and professional manufacturer of shot blasting machine in China.
Main market: South of America,North of America,Middle East,Australia,Asian,South of Asia
KAITAI has gained ISO14001:2004, ISO9001:2008 and CE certificates.
Shandong Kaitai Shot-blasting Machinery Co.,Ltd is a professional enterprise which integrates with technical research, development, production, installation, and debugging. Cooperated with machinery college of Jinan University, we have developed cleaning and intensification equipment of shot-blasting and shot-peening.
The company has first-class technology research-development center and well-developed quality management system, and we have passed ISO9001 international quality system certification. Our company is the National Blasting & Peening Standardization Technology Committee Unit. And the company takes part in and sets down the national standard Parabolic Shot Equipment General Technical Conditions All products apply CAD computer-aided design, the appearance applies three-dimensional software design, and key components of numerical simulation use finite element analysis.
Our main products are cleaning machinesand-peening equipmentenviroment-protection and dust-removal equipment,and offer the ideal key equipments to casting, forging and heat treatment, steel structure, container, machinery, shipbuilding, aircraft, locomotive, the machine tool industry.
OUR SERVICE:
1. One year guarantee for the whole machine except of the easy wear spare parts
2,24 hours technical support by e-mail or Skype:
3, Use friendly English software,user manual and detailed Video or CD
4, ODM available
5, Installation and commissioning guidance after the equipment sent to the client’s
BUYING LEADS:
If you are interested in our machine,please kindly inform us the following items:
1,The name of your workpiece?( such as: iron casting parts, Aluminium auto parts etc.)
2,The purpose of the blasting?(rust removal or others?)
3,The size range of the workpiece?( max size and min size)
4,The weight of the workpiece? (max weight and min.weight)
5,The cleaning capacity per day/month?
6, Any other technical requirement?
Q 1: Do you have after-sale service?
A : yes, we do.
Q 2: How long can your spare parts be used?
A: Blade, control cage and distributor are high chrome, and can be used for more than 2000 hours.
Kinds of guard board can be used for more than 3000 hours.
Q3: What’s the nearest airport around your company?
A: The Jinan International Airport is the nearest arround our company. If you want to come to visit out plants, we can pick you up there. BTW, the nearest railway station for fast train is Jinan West Station. We can also pick you up from the station.
Q4: What standards are you carrying out for your products?
A: We produce according to the ISO9001 and ISO14001 rules.
Q5: What’s your international market?
A: We Have exported to about 40 countries and regions all around the world, such as, the USA, France, Singapore, Australia, Middle East, Brazil, Peru and so on.
Q6: Do you sell steel shot or steel grit which can be uses in shot blasting machine?
A: We have four production lines for steel shot and steel grit production, one work shop for steel cut wire shots, and one workshop for stainless steel shot and Aluminium shot and so on.
Q7: Do you have the right to export?
A: Yes, we registered in the Customs and gained the right to export by ourselves.
We are looking forward to doing business and making friends with you.
