HP5024 forced convection tempered glass making machine
1. Brief introduction
This glass bending &tempering furnace is used for producing large-size flat, bent tempered glass for architecture, and multi-curvature bent tempered glass for automobile, shower cabins and kitchen, etc.

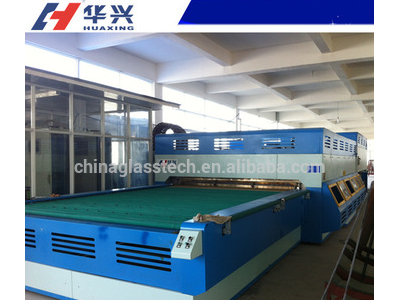

2. Photo of Glass Making Machine
3. Technical Data of Glass Making Machine
Below is the data for our HP series and we also have HPQ series, HPW series, HPS series, HPL series. Please advise me your requirments and we will help recommand a suit one.
|
type |
Max. size(mm) |
Min. size(mm) |
Thickness(mm) |
Capacity(m2/h) |
Power supply capacity(KVA) |
|
HP1506 |
1500*600 |
90*90 |
3-8 |
14 |
≥100 |
|
HP1508 |
1500*800 |
100*100 |
3-12 |
18 |
≥150 |
|
HP2010 |
2000*1000 |
100*100 |
3-12 |
30 |
≥200 |
|
HP2012 |
2000*1200 |
120*120 |
3-12 |
37 |
≥250 |
|
HP2512 |
2500*1200 |
120*120 |
3-12 |
46 |
≥250 |
|
HP2515 |
2500*1500 |
150*250 |
3-19 |
57 |
≥315 |
|
HP3015 |
3000*1500 |
150*250 |
3-19 |
69 |
≥400 |
|
HP2518 |
2500*1800 |
150*250 |
3-19 |
69 |
≥400 |
|
HP3018 |
3000*1800 |
150*250 |
3-19 |
83 |
≥400 |
|
HP3618 |
3660*1800 |
150*250 |
3-19 |
99 |
≥500 |
|
HP3021 |
3000*2100 |
150*250 |
4-19 |
96 |
≥500 |
|
HP3621 |
3660*2100 |
150*250 |
4-19 |
116 |
≥600 |
|
HP4221 |
4200*2100 |
150*250 |
4-19 |
135 |
≥700 |
|
HP3624 |
3660*2440 |
150*250 |
4-19 |
132 |
≥630 |
|
HP4224 |
4200*2440 |
150*250 |
4-19 |
154 |
≥800 |
|
HP5024 |
5000*2440 |
150*250 |
4-19 |
184 |
≥1000 |
|
HP6024 |
6000*2440 |
150*250 |
5-22 |
220 |
≥1000 |
|
HP5028 |
5000*2800 |
200*300 |
5-22 |
214 |
≥1000 |
|
HP6028 |
6000*2800 |
200*300 |
5-22 |
257 |
≥1250 |
4. Our Service
1. Free home installment and technical training, and guiding you how to operate it.
2. Offering operation parameter for processing different laminated glasses, such as tempered glass, float glass, real flower glass and picture laminated glass, etc.
5. certificates
6. Electric parts configuration
|
Electric parts |
Brand |
|
Electrical system |
Omron (Japan),Siemens(Optional) |
|
Ceramic rollers |
Zhongcai(China famous brand), VSV(Optional) |
|
Insulated cotton |
Luyang(China), ISOLITE(Optional) |
|
Heating wire |
Cr15Ni60 |
|
Frequency inverter |
Schneider(France),ConVO(Germany),Mitsubishi(Optional) |
7. Advantages of toughened glass machinery
a.5mm H style steel for main frame
b.3mm steel for side board
c. servo motor
d.siemens system
e.VSV ceramic roller
f. Schneider transducer
g.Aeop insulation cotton
h.ABB electrical machine
i.Cr15NI60 furnace heating wire
8. Photo of Factory
China Glass Tech Co. Ltd covers more than 60,000 square meter. Mainly engaged in glass machinery, door&windows curtain walls, glass products.
9. Customer Visiting
Products have been exported to over 30 countries. Welcome your visiting.
