Factory-supply Jet Convection Low-E Glass Tempering Furnace
1. Brief introduction
Glass tempering furnace is used for producing large-size flat, bent tempered glass for architecture, and multi-curvature bent tempered glass for automobile, shower cabins and kitchen, etc. The type of sheet glass can be various such as float glass, coated glass, tinted glass,soft low-E glass etc.

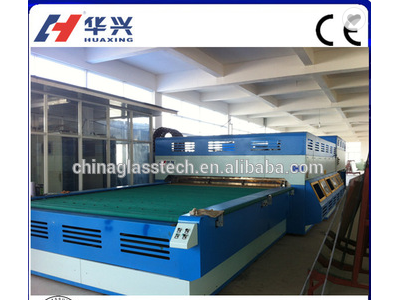

2. Pictures of glass tempering furnace
3. Technical parameter (for your reference)
|
Max. size(mm) |
Min. size(mm) |
Thickness(mm) |
Capacity(m2/h) |
Power supply capacity(KVA) |
|
2500*1500 |
150*250 |
3-19 |
68 |
≥315 |
|
3660*2100 |
150*250 |
4-19 |
139 |
≥630 |
|
3660*2440 |
150*250 |
4-19 |
158 |
≥630 |
|
4200*2440 |
150*250 |
4-19 |
185 |
≥800 |
|
5000*2440 |
150*250 |
4-19 |
221 |
≥1000 |
|
6000*2440 |
150*250 |
5-22 |
264 |
≥1000 |
|
5000*2800 |
200*300 |
5-22 |
257 |
≥1000 |
|
6000*2800 |
200*300 |
5-22 |
308 |
≥1250 |
4. Electric parts configuration
|
Electric parts |
brand |
|
Electrical system |
Omron(Japan),Siemens(Optional) |
|
Ceramic rollers |
Zhongcai(China famous brand), VSV(Optional) |
|
Insulated cotton |
Luyang(China), ISOLITE(Optional) |
|
Heating wire |
Cr15Ni60 |
|
Motor |
Made in china, ABB(Optional) |
|
Frequency inverter |
Schneider(France),ConVO(Germany),Mitsubishi(Optional) |
5. Technical features of glass tempering furnace
1). Adopting Jet Convection heating technology and have a flat quenching section and a bending quenching section
2) Each bending system has one individual fine adjusting device, slightly adjusting the local curve necessarily for the best possible quality products.
3). Adopting precise screw pairs in bending mechanism, which ensures smooth curve of bent glass. There will be no accumulated error in bending mechanism.
4) Different curves can be achieved by simply input the numbers via human-machine interface. With precise screw pairs in bending mechanism and servo control system, the end products are of high quality.
6. Service we provid
1). Installation and Training
Technicians are available to serve overseas for installing and training.
2). Warranty
12 month quality guarantee except for the man-made damage and force majeure circumstances.
3). Cost
Above mentioned travel expense is on the buyer, including the round ticket, accommodation cost and the daily wage.
7. Our honors and certificate
8.Packing and shipping
1) wrapped by plastic film
2) according to customers' requirement
9. Factory Picture
China Glass Tech Co., Ltd is specialized in the research, manufacturing and marketing of various kinds of glass and glass machinery, mainly including tempering furnace and tempered glass, insulated glass, laminated glass etc.
