Features: |
Total power 33kw, 380V/3ph/50hz; Noise < 80db | ||||
| Internal Size |
6900*3900*2600mm | ||||
| Outer Size |
7000*5300*3200mm | ||||
| Entrance Door | 3000*2600mm | ||||
| Operatior’s Door |
2000*700mm | ||||
| Wallboard & Roof board | Adopt high quality rock wool board, thickness: 50mm,density:120kg/m³. Ironhide thickness:0.4mm Roof board with 0.7mm zinc plated steel sheet, single layer. | ||||
| Foundation System | All around with welded 1.2mm zinc plated steel sheet, Bearing bracket with welded zinc plated steel is full of hot dip galvanized steel. Two rows of grid and three rows of diamond plate. |
||||
| Uphill ramp | 2000*900*3sets | ||||
| Heating System | Adopt surface type infrared heat lamp,8 group×3pcs, 1kw/pc. | ||||
| Filtration System | Inlet with high grad fiberglass filter, which filtered the dust larger than 10um, roof with VF-600G filter, TSP value: ≤1.4mg/m3. |
||||
| Light System | With Philips lamps and electronic ballast, with 45 degree installation at inner side of roof | ||||
| Ventilation System | Two 4kw YDW fans, Air volume: 25000m³/h; Rated air speed: 0.3m/s, air changes; 260 times/h. With 3 pcs straight air ducts, 1pc ellow air duct. |
||||
| Control Panel | One unit, including lighting switch, painting switch, warm painting, baking temperature, time setting, urgent stop switch. All components with famous domestic brand . | ||||
| Other Include | All sets of hardware, fasteners and sealants | ||||

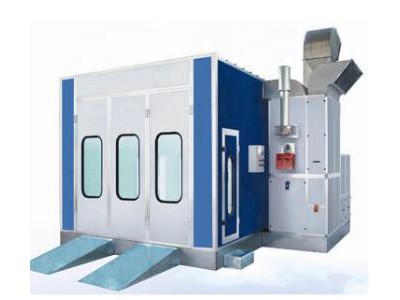

Tip: We can produce the spray paint booth as your requirments.
Zouping Zhongming Environmental Technology Co., Ltd. is a professional manufacturer of automobile maintenance equipment and cleaning equipment since 2003. The factory covers an area of more than 2700 square meters. It has modern production equipment, high-tech industry, product development, manufacturing and sales, and perfect after-sales service, with a total capital of more than 10 million yuan.
Over the years, the company has been awarded "Reputation Enterprise", "Quality Reputation Enterprise", "China National AAA Enterprise" and so on. It has passed ISO9001 International Quality Management System Certification and EU CE Certification and Environmental Protection Enterprise Certification.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Data update freely
OEM
1. Customer can choose the different type of model we have
2. Printing customer' LOGO
3. Order separate part
1. Can you make the machine size and color as our request?
Yes, we can make the machine size and color according to your request.
2. What’s the Min order to your company?
1 set.The sample order, if we have stocks, we will send out the products within 1 week.
3. OEM is available?
Yes, we can put your logo on the machine if needed.And we can make the machine structure as your design request.
4. What kind of measuring system do you have?
We have the two dimension measuring,three dimension measuring and electric measusing system for your choice.
5.What’s the advantage of your company?
We have exported our lifts and service to more than 100 countries. We have specialized team work for you, you will get our feedback within 24 hours./ Germany and Italian advanced technology.
