Wholesale Best Quality Dredge Rubber Pipe Dredge Pipeline Tube China Supplier


Price: Negotiable
Order: 0
Total amount: 0
Delivery period: From the date of payment by the buyer shipped within days
Valid until: long term effective
latest update: 2019-03-27 15:42
Browse times: 197

COMPANY BASIC INFORMATION
Detailed description


Wholesale Best Quality Dredge Rubber Pipe Dredge Pipeline Tube China Supplier


1. Product introduction of the wholesale dredge rubber pipe with flange

The wholesale dredge rubber pipe with flange is widely used in the dredging industry, either in dredging boat or on dredging pipeline, all can use its elasticity and meet the delivery pressure of dredging steel skeleton structure and flexing.Adopt natural rubber, strong textile fiber, steel skeleton and synthetic rubber rubber mud hose and suction pipe, adopt multi-channel production process.Strong wear resistance, high work pressure, flexible, flexible in water, long use.The flange is attached to the side of the dredging rubber hose, so the installation is convenient and quick.(the total length is 100000mm; work pressure and flange can be customized)

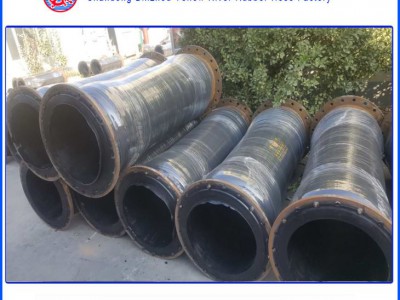

The above is my company's different specifications dredging rubber piping diagram.



2.Product parameter(specification) of the best quality dredge rubber pipe



Items

Index

Items

Index

Items

Index

Working Pressure MPa

≥0.8

Tensile Strength MPa

≥11.8

Aging Resistance

70ºCx72h

Test Pressure MPa

≥1.2

Elongation %

≥400

Change Rate of Strength (%)

+25%-- -25%

Burst Pressure MPa

≥2.4

Abrasion

≤9.875px³

Strength Layer

4 layers of cord fabric



Specification   Table of Dredging Rubber Hose

Standard Size

Working Pressure
   (Mpa)

Standard Size

Working Pressure
  (Mpa)

Inner Diameter
   (mm)

Total Length
   (mm)

Inner Diameter
   (mm)

Total Length
  (mm)

100

1000

1.0

556

1500

1.8

150

1000

1.0

606

1500

1.8

200

1200

1.0

650

1600

1.8

250

1200

1.2

706

1800

1.8

300

1200

1.2

756

1800

2.0

350

1200

1.2

800

2000

2.0

406

1200

1.5

850

2000

2.5

456

1300

1.5

900

2000

2.8

506

1400

1.6



Total Length10000mm.Working Pressure and Flanges can be customized.

The above parameters are for reference only.If you want to know more details, please contact us.



3. Product feature and application of the wholesale rubber dredge  tube

Feature of the China dredge pipeline tube

a. Long lifespan, more than 50 years under normal condition.

b. Good corrosion resistance.

c. Good crack growth resistance.

d. Little coefficient of friction and low flow resistance.

e. Excellent wear resistance, its wear resistance is 4 times higher than steel pipes under normal conditions.

f. Good solder ability, its interface strength is higher than the pipe body.

g. Good flexibility and anti-scratch ability.

h. Very high impact resistance.

i. The unique resistance to low temperature, workable at temperature - 40-60 ° c.

j. Light weight, 1/8 weight of steel pipe, easy for transportation and installation.

k. Flexible metal flange for connection, easy for installation and disassemble.

l. Smooth inner wall, easy for pipeline transportation.


Application of the best quality dredge rubber pipe

The wholesale rubber dredge  pipe, can be used in dredging project and assort with the pipeline, it is mainly applicable for floating hose above water, sinking hose below water, and the connecting hose which connect the continental shelf, cofferdam and wave-resistant hose.

The main conveying medium is: dredging the dredger, dredging the mud, cleaning up the mud, water, sand, etc



4.Product qualification of the dredge rubber pipe supplier china


Our company has many years of experience in the field of pipeline buoyancy, and has been providing high quality float products to customers all over the world since 1992.

In order to be evergreen, we work hard in everything we do is outstanding, including: use the best quality materials and adopts the most advanced manufacturing technology, strict quality control, and recruit the best people to complete all the process.We have obtained international quality certification such as CE, ISO9001, etc. Our efforts and strength have been internationally recognized.There is no change in our pursuit of perfection.



5. Deliver,shipping and serving of the dredge rubber tube supplier


Packing: plastic film or pressing need.

Terms of payment: 30% advance on telegraphic transfer and 70% before shipment

Shipment: Qingdao port or Shanghai port.

Service: five years of product quality guarantee, all-round service, let you rest assured.



6. FAQ

1) Professional :

As a dredge rubber pipe supplier in China,we have rich experience in producing dredging rubber/PE/steel hoses and dredging floaters with various standards for many years, as well as Creditworthy manufacture in China.

2) Best Price:

The cheap labor cost and convenient transportation enable us to offer most favorable price while providing the highest quality product to our customers.

3) Golden Service:

Engaged in exporting for many years, we have been providing the perfect solutions for any feedback from our customer.

4) Integrity

This is the foundation of our principle, you will definitely satisfied if you cooperate with us.



7. Latest news

The Yellow River hose tells you how to choose the big diameter rubber tube, how can you find a professional manufacturer?

First, the use environment of the hose is clarified;There is a selection of the corresponding products for the use of the environment.Finally, find a professional manufacturer that is relatively professional.Price is too low has not ruled out for small workshops, no suppression test, the factory, can't fully guarantee the quality of the product and use, the price is on the high side, likely customer found among traders, after we may seen company, had better choose mid-priced, more safe and reliable!

Our company is a professional China manufacturer and supplier of large-caliber hose, which can be trusted.The quality of our products starts from the raw materials, through the international quality system certification.We produce wholesale of

various large-caliber hose, dredge hose and so on, the quantity is good!Welcome to buy!



Should you are looking for Wholesale Best Quality Dredge Rubber Pipe Dredge Pipeline Tube China Supplier, Yaxiang is here waiting for your contact. We are one of the excellent rubber & plastic products manufacturers and suppliers in China. You can rest assured to wholesale quality bulk products made in China from our factory.
