Similar Bridgestone Water Rubber Flexible Sand Dredging Discharge

production pictures

Everyone should have their own independent thinking, opportunity is to grasp their own. Our hose is that opportunity you face.when you using it,you will say:'' better job I ever did."



Product Description

Similar bridgestone water rubber flexible sand dredging discharge  are purpose built to the special requirements of our
clients.

,consist out of an inner lining adjusted trtant;">We are in thportant;">Our designers will select the most appropriate materials from a wide range of products available to us to meet service and demands requested by our clients,in regard to wear resistance, pressure ratings, tensile strength, bending capabilities and so on.
In general suction dredging hose o the specific requirement of transported media.
Wear indicator layers can be implemented in the hoses which transport abrasive media.
A textile reinforcement of high tensile strength will control the pressure resistance of the hose as well as the tensile strength.
Where as the outer cover is built up by a rubber compound highly resistant against weathering, UV lights and Ozone.
On special request the outer cover can be built with oil resistant materials.

Drag Pipe with end fittings are available in a wide variety which are selected on duty requirements.
1.Discharge Hoses
2.Suction Hoses
3.Floating Hoses

Product detail

In order to be an explicit production cost, the payment must actually control production; otherwise, it is considered another type of expense.So we have to face every problem,the packaging is the last step for the sale.we oftenbraided stripes in rolls or as the customer's request .

Similar bridgestone water rubber flexible sand dredging discharge

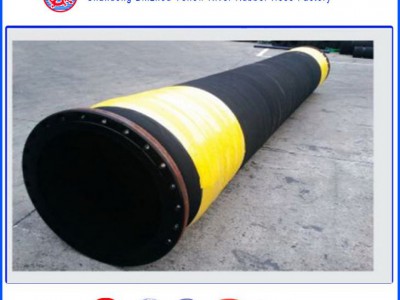

1. Marine dredging hose for dredger with flange end

Application: Used for port,dock seawater silt, sand discharge flood etc.



Characteristics: Flexible, Anti-waves, Wear-resistance, Weather-resistance, Aging-resistance,



seawater resistance



Temperature: From -20 Degrees Celsius To 80 Degrees Celsius.



Guarantee period:1 year or longer



Structure:



Internal rubber layer: NR, SBR,BR



Reinforcement layer: high tensile textile braided or tire cord or steel wire spiral



External rubber layer Black SBR and CR blend rubber with orange attention line.



W.P: 10-30 bar



Inside Diameter Working Presure Vacuum Presure Adhesive Strength Abrasion value Length
mm inch Mpa bar Kpa bar KN/m cm3 m
304 12" 1.5 15 80 0.8 1.8-2.2 ≤0.4 1.5-2.5
400 16" 1.5 15 80 0.8 1.8-2.2 ≤0.4 1.5-2.5
500 20" 1.5 15 80 0.8 1.8-2.2 ≤0.4 1.5-2.5
600 24" 1.2 12 80 0.8 1.8-2.2 ≤0.4 1.5-2.5
800 32" 1.2 12 80 0.8 1.8-2.2 ≤0.4 1.5-2.5
900 36" 1.2 12 80 0.8 1.8-2.2 ≤0.4 1.5-2.5
1000 40" 1.2 12 80 0.8 1.8-2. ≤0.4 1.5-2.5



Any other parameters can by as your order



2.suction dredging hose



Structure:



Internal rubber layer: NR, SBR,BR



Reinforcement layer: high tensile textile braided or tire cord or steel wire spiral



External rubber layer Black SBR and CR blend rubber with orange attention line.



W.P: 10-30 bar

suction dredging hose
