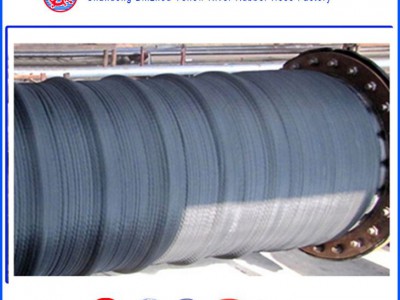

Steel Wire Braided Dredge Rubber Hose
Everyone should have their own independent thinking, opportunity is to grasp their own.Our hose is that opportunity you face.when you using it,you will say:'' better job I ever did." . dredging hose with flange
dredging hose with flange are purpose built to the special requirements of our clients.
We are in the position to build hose sizes ranging from 100 mm ID to 2200 mm ID.
Our designers will select the most appropriate materials from a wide range of products available to us to meet service and demands requested by our clients,in regard to wear resistance, pressure ratings, tensile strength, bending capabilities and so on.
In general Drag Pipe ,consist out of an inner lining adjusted to the specific requirement of transported media.Wear indicator layers can be implemented in the hoses which transport abrasive media.
A textile reinforcement of high tensile strength will control the pressure resistance of the hose as well as the tensile strength.
Where as the outer cover is built up by a rubber compound highly resistant against weathering, UV lights and Ozone.
On special request the outer cover can be built with oil resistant materials.
Drag Pipe with end fittings are available in a wide variety which are selected on duty requirements.
1.Discharge Hoses
2.Suction Hoses
3.Floating Hoses
In order to be an explicit production cost, the payment must actually control production; otherwise, it is considered another type of expense.So we have to face every problem,the packaging is the last step for the sale.we oftenbraided stripes in rolls or as the customer's request .
dredging hose with flange
1. Marine dredging hose for dredger with flange end
Application: Used for port, dock, seawater silt, sand discharge flood etc
Characteristics: Flexible, Anti-waves, Wear-resistance, Weather-resistance, Aging-resistance,
seawater resistance
Temperature: From -20 Degrees Celsius To 80 Degrees Celsius.
Guarantee period:1 year or longer
Structure:
Internal rubber layer: NR, SBR,BR
Reinforcement layer: high tensile textile braided or tire cord or steel wire spiral
External rubber layer: Black SBR and CR blend rubber with orange attention line.
W.P: 10-30 bar
| Inside Diameter | Working Presure | Vacuum Presure | Adhesive Strength | Abrasion value | Length | |||
| mm | inch | Mpa | bar | Kpa | bar | KN/m | cm3 | m |
| 304 | 12" | 1.5 | 15 | 80 | 0.8 | 1.8-2.2 | ≤0.4 | 1.5-2.5 |
| 400 | 16" | 1.5 | 15 | 80 | 0.8 | 1.8-2.2 | ≤0.4 | 1.5-2.5 |
| 500 | 20" | 1.5 | 15 | 80 | 0.8 | 1.8-2.2 | ≤0.4 | 1.5-2.5 |
| 600 | 24" | 1.2 | 12 | 80 | 0.8 | 1.8-2.2 | ≤0.4 | 1.5-2.5 |
| 800 | 32" | 1.2 | 12 | 80 | 0.8 | 1.8-2.2 | ≤0.4 | 1.5-2.5 |
| 900 | 36" | 1.2 | 12 | 80 | 0.8 | 1.8-2.2 | ≤0.4 | 1.5-2.5 |
| 1000 | 40" | 1.2 | 12 | 80 | 0.8 | 1.8-2. | ≤0.4 | 1.5-2.5 |
Any other parameters can by as your order
2. dredging hose with flange
Structure:
Internal rubber layer: NR, SBR,BR
Reinforcement layer: high tensile textile braided or tire cord or steel wire spiral
External rubber layer: Black SBR and CR blend rubber with orange attention line.
W.P: 10-30 bar
Contact us,please let us know your desired product name,quantity,size and other related information,we will reply you at once!
OEM or ODM is accepted.
Upon receipt of the goods, as a result of quality problems need to return or exchange, please contact us within 7 days.
Please contact me for any questions. I'm on service at any time.
Should you are looking for steel wire braided dredge rubber hose, Yaxiang is here waiting for your contact. We are one of the excellent rubber & plastic products manufacturers and suppliers in China. You can rest assured to wholesale quality bulk products made in China from our factory.
