Automatic Fruit Jam Filling and Capping Machine


Price: Negotiable
Order: 0
Total amount: 0
Delivery period: From the date of payment by the buyer 3 shipped within days
Valid until: long term effective
latest update: 2020-04-02 16:17
Browse times: 79

COMPANY BASIC INFORMATION
Detailed description
 Quick Details
Packaging Type:
Barrel, Bottles, Cans
Packaging Material:
Glass, Wood
Type:
Filling Machine
Condition:
New
Application:
Chemical, Food, Medical
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
220/380V, 220/380v
Power:
500W, 500w
Place of Origin:
Shandong, China
Brand Name:
Dongtai
Model Number:
RGG4T-500
Dimension(L*W*H):
6000*1500*1700MM
Weight:
300KG
Certification:
ISO9001, CE
Product name:
Automatic Can Bottle fruit jam Filling and Sealing Machine
Material:
Stainless Steel
Function:
Filling
Bottle type:
No limited
Filling material:
Filling sauce
Brand:
Dongtai
Volume:
10-5000ml
Warranty:
One Year
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Year Automatic Can Bottle Tomato Sauce Filling and Sealing Machine
Packaging & Delivery
Packaging Details
wooden case for Automatic Can Bottle Strawberry/cherry/blackcurrant/mango/ blueberry jam Filling and Capping Machine
Port
Qingdao
Lead Time :
automatic hot sauce filling machine within 20 working days

Product Description

Product Application

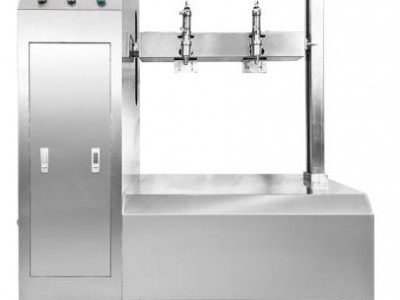

This sauce filling machine can automatically complete the whole process of measuring and filling. And the machine adopts the stainless steel structure, the contact part of the complete machine and the material are made of stainless steel materials so that ensure to meet international health standards.
It is very suitable for the filling of jam, pasta sauce, bean drum and other kinds of sauce.
At present, The filling volume can be freely adjusted within specified range, small measurement error. It adopts compressed air as a driving force, with pneumatic equipment work as power.
Our filling equipment is composed of a console, a storage hopper, a reversing valve, plunger pump and cylinder, pneumatic valve, air purifier, air compressorand other components and it can be used in various environments.

Main Features

Specifications of Automatic Hot Sauce Filling Machine
Filling Heads: Multi-heads (6 heads)
Filling speed: 200-6000b/h
Filling range: 10-5000ml
Filling precision: <±1%
Filling system: Piston pump
Current: 3A
Voltage: 220/110V 50/60Hz
Power:  1.2Kw
Weight: 800Kg
Pressure: 0.4-0.6MPa
Sealing Machine: cans vacuum sealing

This sauce filling machine can be customized according the customers' requirment

Detailed Images

Machine Parts

Name: capping machine

superiorityl:Smoothly transfer the cover without manual adjustment.vacuum capping and good sealing.

Main Features

Name: stirring device
superiorityl: make the material more uniform,prevent water and oil separation.

Products Show

blueberry jam

91.8% Response Rate

spaghetti sauce

91.8% Response Rate

vegetables and fruit jam

91.8% Response Rate

Packing & Delivery
