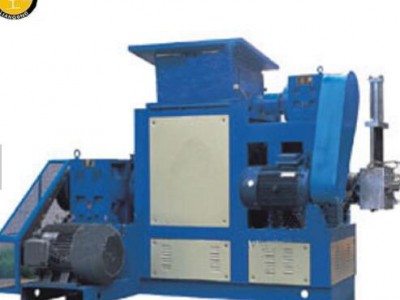

PS foam plastic granulating machinery
1,Introduction:
Since long time, we continuously unable to recycle and use the(EPS or XPS foaming) to the foaming material,caused to pollute the urban and village living conditions seriously,our company technical personnel and Beijing Chemical industry University's technical personnel passed more than a half one year to study, according to the big expanded plastic volume and the weight light characteristic trial manufacturing developed the complete equipment which specially be use for recycling,breaking and extruding for the waste plastics,fill domestic gap.This equipment ease of operation, and has the small volume,low power consumption,suitable for recycling the mill culls for the production foaming material factory.
2,Uses:
This units is to be use for recycling the plastic foam,also suitable to recycling and pelletizing the mill culls for the plastic foam products manufacturer. This new type machine being published, not only reduced the production cycle, simplified the technical process, simultaneously causes the plastic products quality distinct enhancement.It’s the most ideal recycling regenerative equipment for the plastic foam materials.
3,Characteristic:
The host machine use the double step extruding machine,waste plastic foam can be put in the feeding hopper directly,the waste material’s breaking, fusing, extruding, pelletizing of entire process one time to complete.
4,Parameter:
|
Parameter Model |
LGSJ180/110 |
LGSJ250/130 |
LGSJ300/150 |
|
Crush motor power |
7.5kw |
11kw |
15kw |
|
One machine screw diameter |
180mm |
250mm |
300mm |
|
One machine motor power |
15kw |
22kw |
30kw |
|
Second machine screw diameter |
110mm |
130mm |
150mm |
|
Second machine motor power |
7.5kw |
11kw |
15kw |
|
Second machine change nets motor power |
1.5kw |
1.5kw |
1.5kw |
|
Cutting machine motor power |
1.1kw |
1.5kw |
2.2kw |
|
Production capacity |
50--100kg/h |
100-150kg/h |
150-200kg/h |
|
Installation size |
8m*3m*2m |
9m*3.5m*2m |
11m*4m*2m |
Company Information
Laizhou Liangong Machinery Co.,Ltd. is a professional plastic machine manufacturer. Have eighteen years plastic machine manufacturing and exporting experiences. Our plastic machines have advanced manufacturing technique, high automatic and high efficiency &energy saving. The products are well welcomed and praised by the clients and sold to many regions throughout the world, especially in Southeast Asia, Europe, Africa.
If you want to know more about our plastic machine, please feel free to contact me! Thank you!
Basic Introduction
-Established in 1992
-Specialized in Plastic Machine
-90% export sales
-More than 80 employees
Our Abvantages
-Customers in almost 40 countries
-28 years’ experience as a proven professional manufacturer
-CE BV SGS certification
-BV SGS certification for different machines
-Innovative Research
-Continual product development
-Expertise in advanced technology
-Delivers quickly and on time
Our Services
-Installation Service
Installation Service is available, which will surely keep machine use safely.
-Technical Know-How
Supply technical to operate machine and make customers convenience.
-Customer Training
Train your staff how to use machine properly and how to maintain optimal operational productivity.
-After-sale Service
Offer the preventative maintenance and after-sale service.
