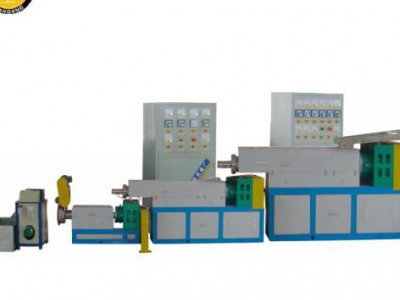

Three Step Granulator
Useful:Waste plastic granulating machine is to polyethylene (large gerrnhouse film, beverage bottles, lined bag, etc) or polyprophlene (the old bags,bunedleslines,etc) by extrusion, cooling, pelletizing production of plastic granules equipment. Particles produced a wide range of uses.
Characteristic: the device cluster 1fonts conjoined. Easy installation and preration. With the broken washing machine, granulator matching, it not drying should be invested in directly to extrusion and granulation, easy process, technology advanced. And applied to different waste plastics. For the use of electric network(opitional hydraulic pressure network), automatic temperature control, national energy-saving patented heater, low power consumption, non-polluting, high degree of automation.
model feature |
150×2/180 |
180×2/180 |
Main screw diameter |
150×2 |
180mm×2 |
Main motor power |
30kw×2 |
37kw×2 |
Sub screw diameter |
180mm |
180mm |
Sub motor power |
15kw |
15kw |
Net changer motor power |
1.5kw |
1.5kw |
Pelleter motor power |
1.5kw |
1.5kw |
Max. production capacity |
300kg/h |
300-400 kg/h |
incasement |
10m×6m×1.5m |
10m×6.5m×1.5m |
