Founded in 1984, specializes in developing and manufacturing customized solar products for a wide range of solar energy applications. Our main products are solar outdoor lights, solar modules and solar power systems.
Our experienced engineering team is committed to providing our customers with high quality solar powered products and excellent customer service. Our facilities are ISO 9001:2008 certified, and our products comply with TUV, CE, and RoHs.

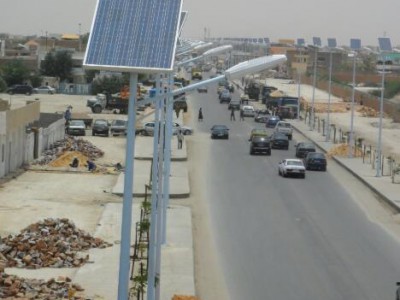

Solar street light
SPECIFICATION
|
JYSL-303015 2013 newest special design solar garden light |
|||
|
Name |
Specification |
Quantity |
Parameter |
|
Solar panel
|
60W/12V |
1 piece |
Polycrystalline solar cell Vm: 15.91V,Im: 3.81A,Voc: 20.12V, Isc: 4.16A Size:776x676x35mm, Weight:5.8KG Warranty: More than 90% output power in 10 years .and more than 80% output power in 25 years. The product have passed TUV, IEC, MCS etc certificate. |
|
LED |
15W/12V
|
1 piece |
Single Integrated Power LED(15W),Woking Voltage DC12V,General luminous:1500lm,LED Luminous Efficiency:100lm/W,Center illuminance:25lx,Ra>80,Color temperature:2700-7000K,Protection Grade :IP65,Working life ≥50000hours. Lamp shade is Die-casting aluminum, and its face is UV-resistant and corrosion resistant . No bad glare; No Strobe; Start without delay . Low maintenance cost . |
|
Controller
|
5A |
1 piece |
PHOCOS CIS Series,12V/24VAutomatic identification , light control and time control,Protection Grade IP68 |
|
Battery |
12V/60AH |
1 piece |
Gel Battery that dedicated to solar energy. For the solar energy street lamp that in simple circulatory system. And its advantage is that :the small self -discharge rate ,the better deep discharge, Top charge acceptance, large capacity,strong start in low , the good shock resistant and Anti-temperature charge Production |
|
Pole and other steel fitting |
3M |
Set |
Material: steel Q235 or Q345; hot dip galvanized and powder coated . iron plate is rolled into type for one time . Solar panel bracket is consist of Angle iron and Flat iron. Any section is made with mold. With high efficiency and precision , standardized parts can replace each other and the same time increase the packing quantity and reduce transport cost . Lamp arm is consist of welded tube and iron plate. |
|
Wires harness |
-- |
1 piece |
With the special connector ,standardization,substitutability ,high installing efficiency,saving cost . Wire harness can be designed according to different lamp type . |
|
others |
baseplate, steel rod, standard component and so on |
||
|
Conditions |
Voltage of system: 12V, working time: 8 hours/day , Work temperature -20°C - +55°C |
||
|
Packing Quantity |
120set/20FCL |
||
Description of design
1. This system configuration is suitable for area that peak sunshine for five hours, three continuous rainy days. System configuration can be designed according to customer's specific project requirements and climate conditions.
2. The energy of Solar street lighting is form solar radiation, Whether the sunlight that exposure to solar panels is abundant or not directly affect lamp lighting effects, so solar panels can exposure to sunlight at any period of time , so when Select where to install the lamp, you should avoid tall buildings or other objects that can block the panels.
3. In order to ensure its beautiful characteristic and its ability that receive better solar radiation, we suggest that you should clean the dust on the solar panels every half of one year , but don't rinse area from the bottom up.
4. Battery is placed on the top of the pole, and it’s good for battery heat-dissipation, shortening the length of the cable, reducing pressure drop, easy installation & anti-theft.
Product obtained CE TUV SonCAP and MCS certificate
Application range
seline;">The road, City Road, Pedestrian Lane, Squares, Schools, Parks, Gardens, Residential areas, lant and other places of outdoor lighting
STREET LIGHT SIMULATION
LIGHT SOURCE - LED
1. Electrical property of LED street lights work under rated power supply voltage and rated frequency ,the plus between actual power and rated power consumed should not be more than 10 %.
2. LED street light protection grade should not be less than IP65.
3. LED street lamps rated average life expectancy should not be less than 50000h.
4. LED street lamps rated maximum temperature TC value should not be greater than 58.
5. LED Tube Lamp maximum heat sink temperature should not be greater than 65
6. The voltage protection level of Noise immunity & Surge suppression performance (Thunder-proof design ) is not less than 2kv ( Line - line ) and 4kv ( Line -road)
7. When some LED lights goes off or the whole lamp dimming, spot shapes and pavement illuminance uniformity should not significantly change.
Deep cycle, High efficiency,Maintainance-free sealed battery
Gel battery is able to bear overfull charge or overfull discharge, able to bear shaking,shock resistance, Long storage life. High quality alloy plate grid and unique electrolyte formula, Delicate and perfect processing and manufacturing technology, Make the battery has a large capacity,good deep discharge performance,charge acceptance ability,low temperature starting ability,low self-discharge rate,Good performance of resistance to temperature change,,long life characteristics and so on. Security seal structure, no need add acid or water to maintenance it, Does not leak acid, No acid mist, Environmental pollution free.
Storage battery is gel deep cycle discharge type, apply to frequent load changes, harsh environment temperature conditions. inside a specially designed grid to ensure the reliability of the depth of discharge cycle, under this 100% discharge circumstance, could recycle use it 400 times. Used for solar street lamps and other light cycle system, could guarantee the cycle life of more than 1600 times.
Product overview
CIS controller is special designed for solar street light, provide perfect, multiple protection for solar street lamps’ electrical systems, and through good control strategy, effective extend the system’s power supply time.
*protection grade: IP68, effective dust-proof and water-proof
*sturdy and durable aluminium alloy case, anti-corrosion
*four stages charge control(main charge,powerful charge,equalizing charge,float charge)
*Single and double street light output contro l flexible
*infrared remote controller (CU) set, simplicity and convenience operator
*LED status indicate
*at night all the time,morning and twilight double time light-operated/time control timing function
*external temperature sensor, automatic temperature compensation
*output power regulatory function, saving energy and protecting environment.
*compact structure, small volume, easy to install
PRODUCT FUNCTION
*Over protection: could chose LVD mode or SOC mode
*Overvoltage protection: 12V system 15.5V, 24V system 31V cut off the load
*Low-voltage protection: 12V system 10.5V, 24V system 21V cut off the load
*Over-current protection: When the actual current is 110% greater than the rated current, Delay of 120 s to cut off the load
When the actual current is 150% greater than the rated current, Delay of 10 s to cut off the load
When the actual current is 200% greater than the rated current, Delay of 3 s to cut off the load
*Short-circuit protection: When the actual current is three times greater than the rated current, immediately cut off the load
*Reverse polarity protection
