Marble Engraving Machine


Brand: IKCNC
Spindle power: 5.5kw
Spindle speed: 24000r/min
Max moving speed: 25000mm/min
Price: 20000.00Dollar/station
Order: 1
Total amount: 203
Delivery period: From the date of payment by the buyer 3 shipped within days
Valid until: long term effective
latest update: 2019-05-25 15:32
Browse times: 86


COMPANY BASIC INFORMATION
Detailed description

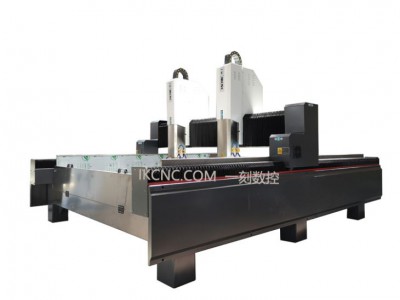

Marble engraving machine

image001_副本



Main configuration and features:

●Multi-head series Marble Engraving Machine is more suitable for mass engraving of the same or symmetrical products. On the basis of single head series, multi-head series add multiple independent heads,using the same bed,control accessories,and other transmission, to the maximum extent to improve cost performance. Compared with the single-head marble engraving machine, it has better mass production capacity, and can choose 2-4 carving heads according to actual processing requirements, and increase the processing efficiency exponentially

●Because the characteristic of the mass production capacity ,multi-head marble engraving machine is especially suitable for: engineering batch quantity processing, "single" category mass production, professional stone carving processing.

Double head

IKCNC1325

Effective range of travel

1300*2500*500/mm

Z axis stroke

250mm standard type, (600mm for your choice)

Transmission form

X/Y helical rack,Z ball screw,  square rail.

Countertop structure

Striped aluminum

Spindle power

5.5kw

Spindle speed

24000r/min

Max moving speed

25000mm/min

Max working speed

15000mm/min

Drive system

Step/ mixed servo /Servo

Voltage

AC380/3PH/50HZ

Control system

DSP/WEIHONG/WEIHONG Handle or others



Application:

Home decoration industry


Funeral industry


Engineering project and ancient building





Applicable materials: artificial stone, quartz stone, marble, granite, sandstone, bluestone, cement, tiles , wood, nonferross metal and so on
