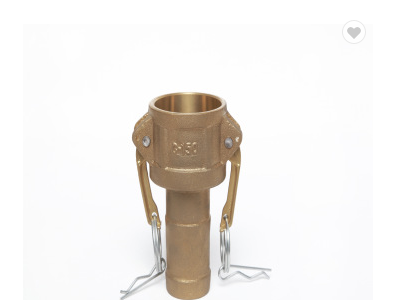

china Copper Material and Round Head brass cam quick lock coupling factory
Product Description
Technical parameter:
|
Product |
camlock coupling | |||
| Material | stainless steel 316,304; brass; aluminium;PP | |||
| Place of origin | wudi ,shandong ,china | |||
| Type | A / B / C / D / E / F / DC / DP / AA / DD / AD | |||
| Thread | NPT/BSP/BSPT/DIN2828. | |||
| Assembly parts | stainless steel, brass, aluminium handles, pins rings and safety pins |
|||
| Connection | male;female | |||
| Size | 1/2"-6";DN15-DN150 | |||
| Gasket | buna(NBR),viton and teflon, silica | |||
| Test pressure | 3/4"-2" 250PSI(17.6bar);3"-4" 200PSI(14.8bar); 21/2" 225PSI(15.8bar);6"150PSI(10.5bar) |
|||
| Workmanship | precision casting or forged | |||
| Application | petroleums,textiles,minings,brewings, inks, dyes, paper mills, processing plants chemicals, fertilizers, chemicals, |
|||
| Processing | CNC lathe processed | |||
| Packing | plastic bag → carton → wooden pallet | |||
Type C Specification for Reference:
| Size(Inch) | 1/2″ | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 2″ | 2-1/2″ | 3″ | 4″ | 5" | 6" |
| Size | 50 | 75 | 100 | 125 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
| A | 8 | 15 | 22 | 27 | 34 | 46 | 60 | 70 | 93 | 121 | 146 |
| B | 70 | 81 | 94 | 105 | 110 | 120 | 133 | 143 | 153 | 174 | 191 |
| D | 14 | 21 | 27 | 33.5 | 40.5 | 53.5 | 67 | 78 | 103 | 132 | 155 |
| E | 29 | 30 | 36 | 44 | 44 | 49 | 53 | 53 | 55 | 61 | 67 |
| weight | 0.15 | 0.19 | 0.26 | 0.43 | 0.47 | 0.63 | 0.88 | 1.27 | 1.94 | 3.45 | 4.55 |
| To equip with “A” or“E” or “F” or“DP” |
|||||||||||
