stainless quick female connector dc

Head Code:： Hexagon
Material:： Stainless Steel
Model Number:： NONE
Price： Negotiable
Order： 0
Total amount： 1000000
Delivery period： From the date of payment by the buyer 30 shipped within days
Valid until： long term effective
latest update： 2019-09-12 11:21
Browse times： 74

COMPANY BASIC INFORMATION
Detailed description
 Quick Details
Place of Origin:
Shandong, China
Brand Name:
YT FITTING
Model Number:
NONE
Type:
Coupling, A, B, C, D, E, F, DC, DP
Material:
Stainless Steel
Technics:
Casting
Connection:
Female
Shape:
Equal
Head Code:
Hexagon
Product name:
stainless quick female connector dc
SIZE:
1/2" - 6"
Thread:
BSPP BSPT NPT
Seal:
NBR, BUNA, EPDM, VITON
Working Pressure:
150~250PSI
Standard:
MIL-C-27487(A-A59326)
Application:
Oil, Water, Chemical
Certificate:
ISO 9001:2008, CE
Processing:
Investment Casting & Lathe Machining
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
plastic bag, carton & pallet
Port
Qingdao, Tianjin, Shanghai
Lead Time :
within 30 days

Product Description

1. Product Name: stainless quick female connector dc

2. Material: Stainless Steel 304, 316

3. Size: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 5", 6"

4. Type: A, B, C, D, E, F, DC, DP

5. Thread: NPT, BSP

6. Gasket: NBR, EPDM, Viton, Silicone

7. Standard: MIL-C-27487 (A-A59326)

8. Certification: ISO9001, CE

Product Name
stainless quick female connector dc
Material
stainless steel 304, 316
Type
A, B, C, D, E, F, DC, DP
Size
1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 5", 6"
Thread
NPT, BSP
Gasket
NBR, EPDM, Viton, Silicon
Working Pressure
3/4"-2" 250PSI(17.6bar); 2-1/2" 225PSI(15.8bar); 3"-4" 200PSI(14.8bar);6"150PSI(10.5bar)
Application
Oil, Water, Chemical
Standard
MIL-C-27487 (A-A59326)
Certificate
ISO9001, CE
Products Show

Other products of this company

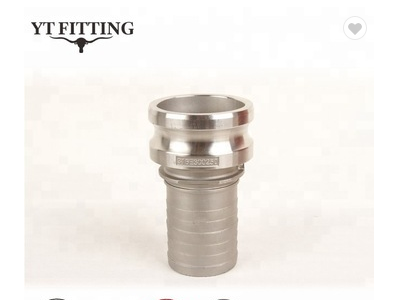

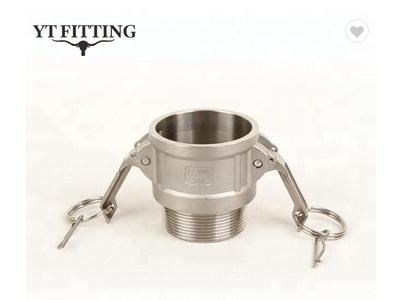

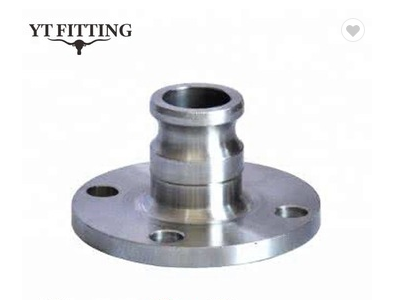

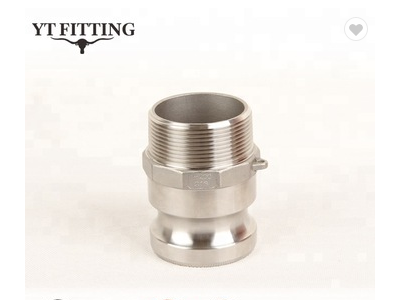

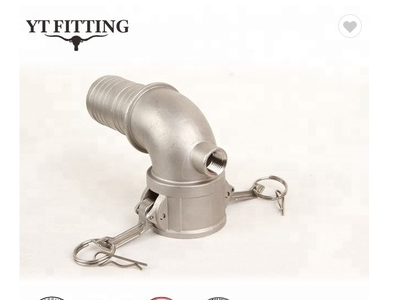

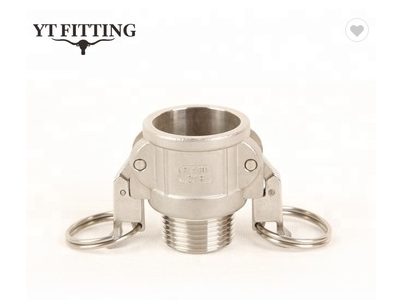

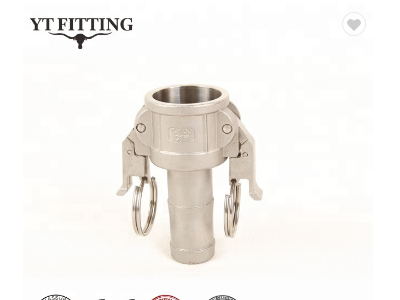

quick release coupling male & female npt Stainless Steel Camlock Fittings Stainless Steel Kamlock Coupling Stainless Steel Kamlock Fittings Self-locking camlocks Type C Self-locking camlocks Type B Camlock Elbow Flange Camlock
