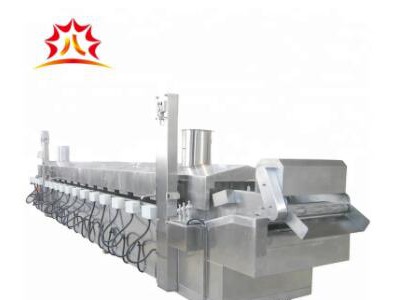

1.Design specification :
1. Equipment model: BYL-6500×600
2. Fried products: Sizing powder products
3. Heating method: electric heating, heating tube power of 120 kilowatts.
4. Frying temperature: 170-180℃
5. Temperature control range: Ambient temperature - 300 ℃ (according to customer needs set).
6. Temperature control accuracy: ±3℃
7. Frying time control range: 40 seconds -2 minutes(the frying time can be adjusted)
8. Equipment size (Long × wide × high): 6650×1800×2200mm
9. Mesh belt width: 600mm
10. Mesh belt form: B mesh belt+ Non-stick mesh belt +longitudinal scraping slag
2.Detailed description of the equipment
This machine use of electric heating pure oil longitudinal scraping structure and adopts double-layer B mesh belt +Polytetrafluoroethylene Non-stick mesh belt+ bottom longitudinalscraping slag.
3.Product detailed information:
Mechanical mesh belt filter oil machine is one of the important auxiliary equipments in the process of fried food production and it can work with the frying machine. This machine uses the physical method to effectively filter out the particulate impurities, carbon compounds, polymer and other harmful substances that in the process of high-temperature frying food produced. Improve the frying environment of food, inhibit the increase of acid value and oxidation value, improve the utilization rate of food oil, reduce the cost of enterprises, improve enterprise efficiency and product quality.
4.Structural features:
1. Large filtration capacity.
2. Can automatically work continuously.
3. The oil level can be controlled automatically.
4. Filter thoroughly.
5. No need filter paper and filter aid.
6. The equipment runs smoothly and reliably and has long life.
5,Packed in Non-fumigation wooden case.
6.Company information
Company Information of Shandong Bayi Food Industry Equipment Co.,Ltd. Established in 2015, Shandong Bayi Food Industry Equipment Co.,Ltd. is located in Zhucheng, Weifang city with convenient transportation. The factory covers about 50,000 m2 with working more than 70 working staff. We have our own research and development center. Main products of Bayi are Vacuum fryer, potato chips production line, potato sticks process line, banana chips plant and other auxiliary equipment such as potato peeler, potato slicer, fruit drying oven, fruit and vegetable washing line and pasteurization line.
7.Certifiacte
8.After sales service:
We provide high quality service:
a) Consultation before, during, and after sales;
b) Project planning and design;
c) Debugging until everything is functional;
d) Shipping management from factory to the destination;
e) Installing, maintenance and operation training;
f) New production techniques and formulas;
g) 1 year complete warranty and life-time maintenance service.
9. Contact for more information about Electric frying machine
