wifi 50hz 60hz web internet micro inverter monitor egate gateway as enpahse evoy


Price: Negotiable
Order: 0
Total amount: 0
Delivery period: From the date of payment by the buyer 3 shipped within days
Valid until: long term effective
latest update: 2020-03-21 09:57
Browse times: 14

COMPANY BASIC INFORMATION
Detailed description
 Quick Details
Place of Origin:
Shandong, China
Brand Name:
NEP
Model Number:
BDG256
Application:
HOME
Output Frequency:
50hz 60hz
Work Time (h):
24 hours
delivery time:
with 30days for 25000pcs
packing:
box,carton, pallet making sure stable
warranty:
25years
monitoring:
gateway can be provided 1 for 255
installation:
easy, can be done by yourself
protection:
IP20
size:
37mm*170mm*110mm
power consumption:
<5W
Specification:
MINI
Output Voltage (V):
configurable
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton
Port
Qingdao
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 2000 >2000
Est. Time(days) 3 To be negotiated
Video Description
00:00

00:54






Company Information





Northern Electric & Power Inc. (NEP) was founded in the United States and has manufacturing and R&D facilities in China. The mission of the company is to develop cutting-edge clean energy technologies and provide state-of-the-art solar inverter products to its customers. The first round of investment to the company was US$20 Million, with a planned total investment of US$50 Million. The company is headquartered in the city of Tsingtao, a major industrial center and trading port in the northeastern China. The company campus occupies more than 18 acres in the Tsingtao Export Processing Zone, and has more than 650,000 square feet building space. The campus is planned to be connected through a micro smart grid demo community and powered by electricity from solar, wind and micro turbines. Outside China, the company has operation offices in Chicago, U.S. and Vancouver, Canada.

The technology founders of the company are well-known experts in the fields of power electronics, automatic control, signal processing, and communications. Each of the founders has multiple U.S. and world patents in their specialty areas. They received Ph.D. degrees from top universities in North America, and each has more than 10 years engineering and management experiences in leading U.S. companies.

NEP has a complete product line of grid-tied solar inverters, including 250W~500W micro inverters, 1.5kW~5kW single phase solar inverters, and 10kW~500kW three-phase solar inverters. Field deployment results demonstrated high system efficiency and reliability of NEP solar inverters.

NEP is committed to develop Clean, Reliable, Affordable and Efficient (CARE) products for worldwide customers.






Product Description

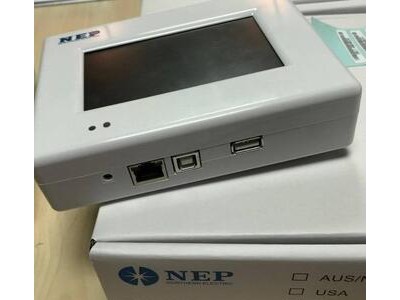

Features of Gateway BDG256  communication monitoring gateway

• Plug & Play setup

• Installation flexibility in connecting to a router

• Communicates over existing electrical wires

• Enables remote troubleshooting of solar array

• Connects up to 255 microinverters



How to install the NEP micro-inverter BDM 250 and BDG256  communication monitoring gateway



Step 1  Install the AC Branch Circuit Junction Box



Step 2  Attach the BDM250 to the Racking



Step 3  Connect the BDM250 Wiring Harnesses



Step 4  Ground the System



Step 5  Complete the connection map and connect the PV Modules



Please check the diagram




NEP Monitor System

NEP solar micro inverter Monitoring system:

BDG256 with wifi, after you login in our :www.nepviewer.com, you can see the data anytime, anywhere

one gatewa can monitor 1-250pcs of micro inverters no matter 250w ,300w and 500w.

110V 60HZ Monitoring system: egate gateway

Phipplines customer

NEP Solar Micro Inverter Plug-n-Power Gateway BDG-256 with Free online Services with Safety ETL and Freqency FCC Compliances (Not Working with Enphase System)

Product Features

-  Aesthetically pleasing with a durable design and airtight sealing.

-  Easy-to-use energy saving touch screen LCD display provides real time system performance monitoring

-  Embedded with state of the art and latest software technology.

-  Power Line Carrier (PLC) mode provides inverter communication.

-  Smart internal memory card integration (available in 256 MB or 1 GB) stores performance data for up to 20 years.

-  Local monitoring via Ethernet connection allows accurate web page monitoring of the inverter’s operating status

-  Supports various external hardware such as a USB keyboard Remote intelligent monitoring allows user to login and monitor system performance anytime from anywher

-  Small size, light weight, and use minimal power

 Characteristics

Manufacturer:        NEP

Dimensions:           6 inches x 4.5 inche x 1.5 inches

Warranty:              1 Year



Data Specs

-  Max. no. inverters:                                      255

-  Communication interface:                            PLC / 10 M / 100 M Ethernet

-  Mains voltage / device voltage [Vac/Vdc]:   69V to 230V

-  Operating frequency:                                   50 / 60 Hz

-  Power consumption [W]:                              5

-  Ambient Temperature [°C(°F)]:             -20°C to +55°C

-  Protection class for logger:                          IP20

QQ20150207104444

Pls contact us to ask for Demo web.



NEP gateway BDG 256 and three phase BDG256-P3 datasheet

BDG256and BDN256-P3.pnggateway datasheet.png

 The following is the brief features of our communication monitoring gateway   Micro Inverter Monitoring Gateway BDG256





Model BDG256
working vlotage 69~230Vac
working frequency 50/60hz
monitoring channel 1~255
protection IP20
environment temperature `25~+55
environment humidity 0%~99%RH
communication powerline(PLC) 10m/100M ETHERNET,ZIGBEE WIFI(optional)
power consumption <5W
size 37mm*170mm*110mm







Monitoring Gateway  communication monitoring gateway



The NEP geteway is a Web-based management system that enables system owners, installers and module manufacturers to monitor system performance. The geteway’s rich graphical interface is available through internet-connected computers and mobile devices. The open architecture of the geteway also permits rapid integration with additional devices and systems using industry-standard web services and methods.



Unlike other PV systems, which capture only aggregate, system-level data at best, the NEP geteway monitors and manages the real-time operating performance of every AC module. System owners and operators are instantly alerted to potential problems, preventing costly downtime and reducing troubleshooting time and maintenance costs.

BDM300-5KW









Packaging & Shipping





Packing Way of  communication monitoring gateway



1,all the accessories including the cables,screws are packed individually protected together with the micro inverter

2,pack the micro inverter uinty by one small box,

3, put 10pcs of micro inverter into one bigger box,

4,27boxes into one pallet,


Range of application

Home,Industry,Business Commercial







Our Services



We offer 25-year warranty and we can offer the engineer to train



  user needs to verify the gateway has been connected to internet correctly.

Project in almost all the wolrd, main market is USA,Europe,Japan etc.





2.jpgNEP solution.jpg



.jpeg
