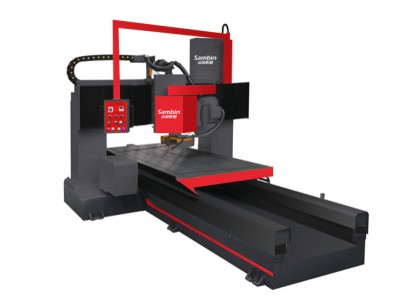

Product introduction
The automatic cutting machine for stone plate bottom adopts a combined structure, and the trolley adopts frequency conversion speed regulation. It can be adjusted according to stone material and feed quantity. It has high cutting efficiency and high automation. It is suitable for cutting the bottom surface of waste board. It can make full use of the bottom of waste board, improve the utilization rate of stone resources and bring more economic benefits.
Technical parameter of stone plate bottom cutting machine
|
Item no. |
unit |
SPC-1300 gantry stone cutting machine |
SPC-1300 cantilever stone cutting machine |
|
Maximum saw diameter |
mm |
Φ400 |
Φ400 |
|
Workbench dimensions(L×W) |
mm |
3000×1500 |
3000×1500 |
|
Machining height range |
mm |
50-400 |
50-500 |
|
water consumption |
m³/h |
3 |
3 |
|
Main motor power |
kw |
18.5kw+11kw |
18.5kw |
|
Total power |
kw |
33 |
22 |
|
Shape size(L×W×H) |
mm |
6500×2800×2400 |
6500×2600×2300 |
|
weight |
kg |
5000 |
4000 |
Features of stone plate bottom cutting machine
Stone resources are non-renewable. Making the best use of raw materials is the common goal of every stone machinery factory. After one year's research and development, Sambin Stone Machinery has been put into practice and improved, and is now being promoted to the market. This stone plate bottom cutting machine uses cross beam cutter to improve cutting accuracy, break the traditional single-axis size saw blade combination, use double-axis size saw blade combination to improve cutting efficiency, reduce energy consumption, cut plate more precise than traditional cutting, improve efficiency of pipeline operation.
FAQ
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% the balance before delivery.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF..
Q. How about your delivery time?
A: Generally,it will take 15 to 30 working days after received your deposit.Also depends on the items and the quantity of your order.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
1. With high quality products and competitive price;
2. We respect each customer and sincerely do business, Win-Win Cooperation.
