2.Available in any size as your need
3.Surface treatment:mill finish power coated , electrophoresis ,colour as you need
4.Uses high--purity and high quality surface reaction in sealing technology and processes to ensure that prolonged resistance to aluminium dust ,acid and alkali corrsion .Bright surface luster and revealed fascinating piece of metal.
5.High corrosion resistance ,weather resistance ,heat resistance, alkali resistance and impact, resistance properties
6.aluminium double glazed window,vinyl replacement window
What is the technical data of Toroyal aluminium and upvc window?
|
Material |
PVC/UPVC foam profiles |
|
size |
60/80 or customized |
|
Color |
White,or customized |
|
surface |
Smoothing,Melamine finished |
|
Certification |
SGS |
|
Surface treatement |
Water-based painting |
|
Applications |
Bathroom, Bedroom, Kitchen, Laundry, Café, Commecial shop, etc |
|
MOQ |
20Tons |
The advantages of Our PVC windows
|
Specification |
Advantage and Attribute Values |
|
heat preservation |
UPVC is a material of low heat conductivity,0.02-0.046W/mK. It is 1/1250 of Aluminium,1/1500 of Matel,1/40 of Cement,1/20 of clay. |
|
sound insulation |
For the three-chamber-cavities' design, after welding,Profiles will form two separate sealed cavities and an open drainage cavity. It is tested that the window with 5mm thickness single-layer glass , noise<20db. That is consistent with the provisions of DIDN4109 |
|
resistance to weathering |
With add a modifier and UV absorbers in PVC profile , It will not to be aging , not to fading and not to be brittle between 70 °C -30 °C. |
|
flame resistance |
The profiles for UPVC windows and doors is not spontaneous, not combustion. It also can be self-extinguishing. |
|
shock resistance |
It will not broken under the shock of the hammer with 1 KG at -10 °C ,because of the special shock resistance formulas. |
|
watertightness |
Water absorption<0.1%, frame and sash are designed with separate drainage systems, rain water can completely cut off from the outside, water tightness meets the requirement of DIDN18055. |
|
air tightness |
There is a rubber seal between the window frames and the glass. and there is sealed strip between the frame and the leaf. It is tested that the gap per unit length of ventilation is under 4m3/mm/hm . The air conditon can work very well in the house and save energy . |
|
decay resistance |
UPVC doors and windows can be decay-resistance ,gas-resistance . Suitable for coastal areas, heavy industry. |

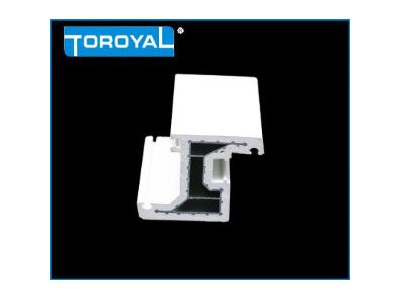

Our pvc profiles with aluminum core
Types of our pvc windows
upvc swing open window etc.
