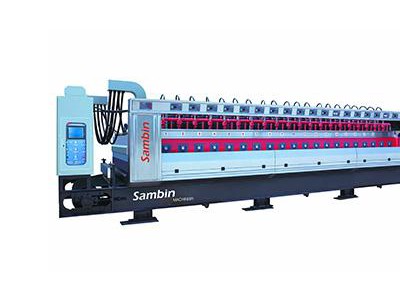

Automatic Continuous Stone Grinding And Polishing Machine


Price: Negotiable
Order: 0
Total amount: 0
Delivery period: From the date of payment by the buyer shipped within days
Valid until: long term effective
latest update: 2019-03-30 16:35
Browse times: 42

COMPANY BASIC INFORMATION
Detailed description
 1.Product Introduction of the Automatic Continuous Stone Grinding and Polishing Machine

This product is a fully automatic continuous stone grinding machine and polishing machine for granite slabs developed by our company with Italian advanced design scheme and electrical control system, combined with the domestic and foreign market demand. It uses ordinary resin grinding discs or triangular plastics commonly used in hand grinders.

The machine is suitable for continuous grinding and polishing of granite slabs. The working speed of plate conveyor belt and grinding disc transverse moving beam is regulated by frequency converter; the working pressure of grinding disc and the grinding width of plate can be adjusted within the set range. The machine can automatically recognize the shape of the plate, and each grinding disc (grinding head) can automatically ascend and descend according to the shape of the plate recognized. At the same time, the grinding of the plate can be tracked and recorded. The whole machine is manufactured according to standardization, and has the advantages of stable performance and low failure rate.

201812210913357620250



2 . Product Parameter(Specification) of the Automatic Continuous Stone Grinding and Polishing Machine



Number of grinding head

16pcs

Air consumption

320L/min

Work thickness

10-50mm

Power of main motor

7.5kw×4,5.5kw×12

Work width

500-1250mm

Total power

107kw

Conveyor speed

0.5-3m/min

Gross weight

17000kg

Cross beam swing speed

10-45m/min

Machine dimension

(L×W×H)

7940×3200×2200mm

Water consumption

18m³/h





3 . Product Feature And Application of the Automatic Continuous Stone Grinding and Polishing Machine

1 . The machine adopts foreign design scheme and automatic system. Combining with domestic market demand, the product has stable performance, high output and low maintenance.

2 . The machine is made of labeled castings and steel. Bearing, motor, reducer and other components are selected from Germany, Japan, Taiwan and other brand electrical appliances.

2. The control system of the machine is controlled by PLC terminal. The LCD touch screen terminal is used to set parameters for the human-machine interface, and there are fault hints during the operation of the equipment, etc.

3. In addition to the main engine, the whole set of equipment is equipped with automatic upper and lower racks, automatic feeding devices, drying equipment and transition racks. The whole machine has a high degree of automation. The control system is controlled by PLC terminal. The LCD touch screen terminal is used to set parameters for the human-machine interface. There are fault warning and automatic lubrication warning system in the operation of the equipment.

The working speed of plate conveyor belt and grinding disc transverse beam is infinite speed regulation; the working pressure of grinding disc and the grinding width of plate can be adjusted within the set range. The shape of the plate can be recognized automatically, and each grinding disc can rise and fall automatically according to the recognized shape of the plate. At the same time, the grinding of the plate can be tracked and recorded. The spindle system adopts advanced sliding sleeve lifting structure. The whole machine is standardized according to the technical requirements of foreign countries. It is the first one in China and its performance has reached the leading level in China.



4 . Production Details of the Automatic Continuous Stone Grinding and Polishing Machine

1 . The rubber elasticity of each grinding head can be adjusted according to different abrasives by using a new type of grinding head. The smoothness and smoothness of the plate produced under the same conditions are more than 10%. The grinding head can also eliminate the advantages of grinding abrasives

20180928172319_18779

2 . The grinding head with adjustable lifting stroke can reduce the backlash of the grinding head and adjust the upper and lower limit position of the grinding head. It is conducive to reducing the thickness of grindable sheet (sheet), improving the service life of belt, increasing the production speed of sheet and reducing abrasive consumption.

20171214012048_19742

3 . Side beam traveling track adopts upper silver linear track (imported from Taiwan); when traveling, the cross beam is stable, does not shake and does not reach the top.

20171214012111_78197

4 . 20 (24) head back adopts double reducer series mechanism with strong horsepower and long service life.

20171214012119_50001

5 . 12 (16) head back adopts single reducer mechanism.

20171214012129_66579

6 . The rotary encoder base of the worktable is fully sealed, which is advantageous to dust prevention and waterproof and can reduce the failure rate.



20171214012140_78414

7 . The cross beam walking rotary encoder adopts synchronous belt transmission mode, which has the characteristics of stable signal and easy maintenance.

20171214012156_24067

8 . The primer uses epoxy aluminium-rich paint, which has good rust resistance and long service life.





9 . The main motor is manufactured according to the old standard, and the knife is strong and powerful.

The aluminium shell can reduce the total weight of the cross beam, and the lightness and agility when swinging are beneficial to increase the output.

20171214012248_77760

10 . The possibility of axle breakage can be reduced by using chain drive to connect the reducer with the roller.



20171214012300_26254



5 . Product Qualification of the Automatic Continuous Stone Grinding and Polishing Machine

201812210947439139747

6 . Deliver,Shipping And Serving of the Automatic Continuous Stone Grinding and Polishing Machine

未命名_meitu_0

7 .  FAQ

Q: When the manufacturers shipped the product?

A: delivery term within 15 days after get the down payment.

Q:Is the machine fully automatic

A:Of coures.

Q:What kind of motor is used?

A:The machine USES Taiwan servo motor precision operation, to ensure the accuracy of each perforation.



8.Latest News

Stone machinery is an energy-efficient stone equipment, which is widely used in the industry. The improvement of machinery is a powerful way to improve the competitiveness of manufacturers, and also meets the development needs of modern society. So for stone machinery manufacturers, how can we improve the traditional technology? Many people are not very clear about this. Let's explain it in detail for you today.

Traditional stone machinery technology can not meet the requirements of manufacturers, waste manpower, physics, and affect the efficiency of production. Now stone machinery mainly looks at the use of supporting "software", that is, the application of composite processing technology. How to make better use of these characteristics to optimize the traditional stone processing technology database and establish a database of special-shaped stone products with shorter process chain, higher efficiency and equipment utilization rate has become an urgent problem to be solved. only when this problem is solved, the goals of high quality, high efficiency, energy saving and emission reduction, and environmental friendliness can be truly achieved, and stone enterprises can overcome the difficulties.

First. Continue to strengthen the geological exploration of stone resources, vigorously promote the effective integration of resources, comprehensively improve the mining technology of stone mines, prohibit the disorderly and destructive exploitation of resources, support enterprises to actively develop and rationally utilize foreign resources and improve the comprehensive utilization rate of resources; According to 2010, China imported 12.31 million tons of stone, totaling 2.26 billion US dollars, an increase of 17.6 billion over 2005, respectively. 0% and 175%. It is expected that by 2015, the sales revenue of Enterprises above the scale of stone machinery industry will reach 350-400 billion yuan, with an average annual growth of more than 20%.

Secondly, we should speed up the technological transformation of existing enterprises and promote the new mining technology of mechanical equipment such as stone saw, stone cutter, bridge-type diamond disc saw, hydraulic combined saw and so on. We should also promote large-scale modern complete sets of technological processes and equipment, including new technologies such as numerical control machinery, processing centers, intelligent control and so on. We should establish a long-term and cooperative stone supplier. Close, stable and win-win cooperation to promote the brilliant future market of stone machinery industry!
