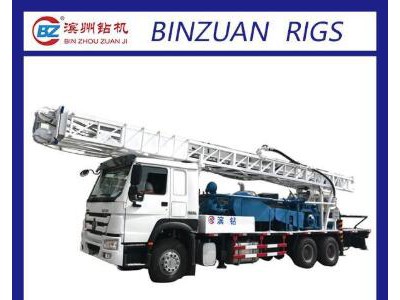

Introduction to the：BZC400CJHW removable water well drilling rig
1. with HOWO brand chassis 6X4 or 6X6 form
2. Drilling power: COMMINS brand diesel engine 112KW
3. Drill different layers, such as soil layer, clay layer, rock layer etc.
4. Drilling with mud pump, air compressor+DHT hammer, Air foam etc.
5. Easy to operate and maintain。
Detailed introduction：
BZC400CJHW removable water well drilling rig
1. The drilling rig has four hydraulic jacks; they can act together or separately to make balance and the rear jack can stretch out which keep the balance.With hydraulic tower, easy to operate.
2.Double mechanical winches,mud pump, rotary table,mast, kelly are installed on the chassis, removable more convenient.
3.The main parts of drilling machine such as The winch, turntable,gearbox,tower,chassis are made by our factory;
the performance are stability.
4.The drilling rig can be used in People and livestock drinking water ,farmland irrigation, water source development,drilling water wells,industrial production water supply drilling geothermal wells ,road construction pile foundation ,geological explorations etc.
5.The drilling rig easy operation, easy to repair,high efficient and is the good choice of customer.
|
Parameter |
||
|
Drill depth |
400 (m) |
|
|
Drill rod |
89mm (3-1/2”) |
|
|
Winch capacity |
Main hook lifting capacity（kN） |
240 |
|
Auxiliary hookliftingcapacity（kN) |
160 |
|
|
Max- rope speed of main winch（m/min） |
60 |
|
|
Max- rope speed ofAuxiliarywinch（m/min） |
60 |
|
|
Rotary table |
Inner diameter （mm） |
500 |
|
Rotate speed （rpm） |
96；76；44；24；12 |
|
|
Max-torque（kN.m） |
25 |
|
|
Mast |
Height（mm） |
11900 |
|
Rated load（t） |
28t |
|
|
Drill tool |
Kelly（mm） |
108*108*7500 |
|
Drill rod（mm） |
89*6000 |
|
|
mud pump |
Displacement 850L/min |
Max Pressure 2Mpa |
|
Displacement 300L/min |
Max Pressure 3Mpa |
|
|
Diesel engine |
Cummins 6BT5.9-C150 |
112KW/2200rpm |
|
Transportation size |
L*W*H （mm） |
12500*2500*4000 |
Our service:
1. Pre-sale service:
1) DingLi will provide production design, quotation sheet, working sites video, machinery photos.
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.
3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
