Product parameters:

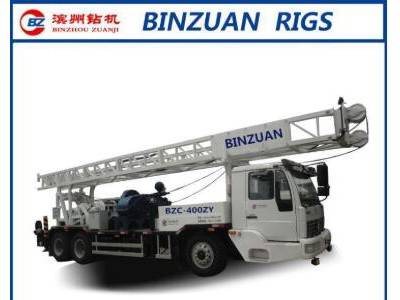

1. BZC400ZY water well drilling rig equipment is convenient and flexible for moving. All devices are installed on the chassis, which is convenient for integration and movement. It adopts cross-country vehicle chassis to adapt to bad road condition.
2. Comprehensive design makes the machine work steady in extremely harsh climate.
3. For the high integration degree, preparation work before operation is quick and convenient.
4. It is applicable to the field of metallurgy, geology, petroleum, coal, water conservancy, forestry, troops, building materials and so on.
5. It is suitable for operating in clay layer, sand layer, gravel layer, gravel layer, bed rock, etc.
6. Water well drilling rig adopts all hydraulic top head drill, which greatly improve the drilling efficiency.
7. All rigs all adopt full hydraulic control, which is simple and convenient.
8. It is featured with low maintenance cost.
9. Our drilling equipments are accredited by the ISO9001:2008 certification, military enterprises certification and the implementation of national and military standards.
|
Technical parameter |
|||
|
Drilling depth（M） |
400 |
||
|
Drilling diameter（mm） |
500 |
||
|
Speed of turntable（r/min） |
21.2；36；63.2；100.6；155；20.2（reverse） |
||
|
Torque of turntable（KN.m） |
18；10.6；6；3.8；2.5；18.9（reverse） |
||
|
Single rope lifting capacity of main windlass（KN） |
45 |
||
|
The capacity of main windlass(KN) |
270 |
||
|
Single rope lifting capacity of hydraulic windlass（KN） |
40 |
||
|
The capacity of hydraulic windlass(KN) |
160 |
||
|
The lifting capacity of hook（KN） |
270 |
||
|
Bearing capacity of mast (KN) |
270 |
||
|
The height of mast (mm) |
11500 |
||
|
Bearing capacity (t) |
30 |
||
|
Pipe |
Kelly （mm） |
108×108×7500 |
|
|
Assistant pipe (mm) |
Ф89×10×5500 |
||
|
Hydraulic pump |
Model |
CB-HP80/40 |
|
|
Pump delivery (ml/r) |
80/40 |
||
|
Rated speed (r/min) |
2000 |
||
|
Rated pressure(MPa) |
20 |
||
|
BW850/20 |
Diameter of cylinder (mm) |
150 |
|
|
Stroke of piston (mm) |
180 |
||
|
Theory of flow (L / min) |
600 850 |
||
|
Rated pressure (Mpa) |
3 2 |
||
|
Pounding times (min-1) |
58 82 |
||
|
Diameter of suction tube (mm) |
127 |
||
|
Diameter of drain pipe (mm) |
64 |
||
|
Input speed (r / min) |
470 |
||
|
Input power (kw) |
40 |
||
|
Overall dimensions (mm) |
2000*1030*1400 |
||
|
Weight (t) |
1.5 |
||
|
Truck chassis |
Model |
TAZ5183TZJ |
|
|
Drive form |
6×4 |
||
|
Engine |
Model |
CA6DE3-20E3(Europe Ⅲemission standard) |
|
|
Rated power（KW） |
147 |
||
|
Speed （r/min） |
2300 |
||
|
Size （L*W*H）(mm) |
11110×2490×2500 |
||
|
Electric generator |
Model |
MF |
|
|
Rated power (kw) |
15 |
||
|
Rated voltage(v) |
400 |
||
|
Rated current(A) |
27 |
||
|
Speed (r/min) |
1500 |
||
|
Frequency(Hz) |
50 |
||
|
Protection level |
IP21 |
||
|
Insulation Class |
H |
||
|
The best working gear (or speed) |
5th gear（1000-1400r/min） |
||
|
The highest speed（Km/h） |
75 |
||
|
Weight （kg） |
19340 |
||
|
Transport size（L*W*H）(mm) |
12160*2490*3440 |
||
|
Working size（L*W*H）(mm) |
11110*2490*13110 |
||
Details
1. Truck type borehole drilling rig is convenient and flexible for moving. All devices are installed on the chassis, which is convenient for integration and movement. It adopts cross-country vehicle chassis to adapt to bad road condition.
2. Comprehensive design makes the machine work steady in extremely harsh climate.
3. For the high integration degree, preparation work before operation is quick and convenient.
4. It is applicable to the field of metallurgy, geology, petroleum, coal, water conservancy, forestry, troops, building materials and so on.
5. It is suitable for operating in clay layer, sand layer, gravel layer, gravel layer, bed rock, etc.
6. All rigs all adopt full hydraulic control, which is simple and convenient.
7. It is featured with low maintenance cost.
8. Our drilling equipments are accredited by the ISO9001:2008 certification, military enterprises certification and the implementation of national and military standards.
Measures for the use of the water well rig during the running-in period
1. The operator should receive training and guidance from the manufacturer, have a thorough understanding of the structure and performance of the rig, and obtain certain operation and maintenance experience before operating the machine. The product maintenance instructions provided by the manufacturer are the necessary information for the operator to operate the equipment. Before operating the machine, be sure to read the maintenance instructions.
2. Pay attention to the working load during the running-in period. The working load during the running-in period should not exceed 80% of the rated working load, and the appropriate workload should be arranged to prevent the overheating caused by the continuous operation of the machine for a long time.
3. Pay attention to the indications of each instrument frequently. If an abnormality occurs, it should be stopped in time to be excluded. If the cause is not found, the operation should be stopped before the fault is not eliminated.
4. Pay attention to check the position and quality of lubricating oil, hydraulic oil, coolant, brake fluid and fuel oil (water) frequently, and pay attention to check the sealing performance of the whole machine. During the inspection, it was found that the oil and water were too much, and the reason should be analyzed.
5. Keep the machine clean, adjust and tighten the loose parts in time to prevent the parts from being worn out or the parts being lost due to looseness.
6. At the end of the running-in period, the machine should be forcedly maintained, checked and adjusted, and the oil should be replaced.
