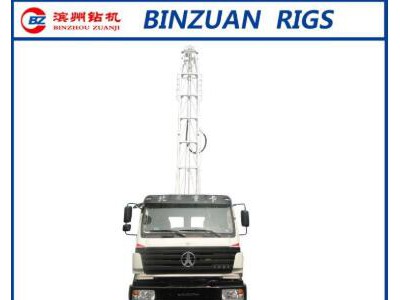

BZC600BLBC deep water well drilling machines also known as full hydraulic rig. A rig that uses hydraulic pressure to drive and control all moving parts. This type of drilling rig realizes stepless speed change by high-pressure variable oil pump, which simplifies the transmission mechanism and removes the gear transmission. It not only reduces the weight of the rig but also fully utilizes the power. At the same time, the rig has a high speed, stable operation, convenient and safe operation, easy to realize automation and instrumentation, and is particularly suitable for drilling water borehole.
Product parameters:
|
Technical parameter |
|||
|
Drilling depth（M） |
600 |
||
|
Drilling diameter（mm） |
500 |
||
|
Speed of turntable（r/min） |
117；102；60；38；22；13；16(reverse) |
||
|
Torque of turntable（KN.m） |
5.4----50 |
||
|
Single rope lifting capacity of main windlass(KN) |
50 |
||
|
Maximum lifting capacity of main windlass(KN) |
300 |
||
|
Single rope lifting capacity of assistant windlass(KN) |
60 |
||
|
Maximum lifting capacity of assistant windlass(KN) |
240 |
||
|
The lifting capacity of hook（KN） |
300 |
||
|
Bearing capacity of drilling tower (KN) |
360 |
||
|
The height of drilling tower (mm) |
15519 |
||
|
Drill pipe |
Kelly bar（mm） |
108×108×10500 |
|
|
Assistant pipe (mm) |
.Ф89×10×9000 |
||
|
WB1200/12 |
Diameter of cylinder (mm) |
120 |
|
|
Stroke of piston (mm) |
140 |
||
|
Theoretical flow (L / min) |
1200 970 846 467 |
||
|
Rated pressure (Mpa) |
4.5 5.5 6.5 12 |
||
|
Diameter of suction tube (mm) |
120 |
||
|
Diameter of drain pipe (mm) |
64 |
||
|
Input power (kw) |
110 |
||
|
Truck chassis |
Drive form |
8×4 |
|
|
Engine |
Model |
WP10.270E32 |
|
|
Rated power（KW） |
199 |
||
|
Speed （r/min） |
2300 |
||
|
Size （L*W*H）(mm) |
11510*2480*2800 |
||
|
Electric generator |
Model |
MF |
|
|
Rated power (kw) |
30 |
||
|
Rated voltage(v) |
380 |
||
|
Rated current(A) |
27 |
||
|
Speed (r/min) |
1480 |
||
|
Frequency(Hz) |
50 |
||
|
The highest speed（Km/h） |
70 |
||
|
Weight （kg） |
27500 |
||
|
Transport size（L*W*H）(mm) |
15539×2480×4032 |
||
|
Working size（L*W*H）(mm) |
11145×2480×16765 |
||
After sales service
◎Free warranty service and lifetime tracking service: Provide warranty service and lifetime tracking service according to after-sales service commitment, free maintenance during the warranty period, free replacement parts.
◎According to the customer's experience and geological conditions, we provide strategic choices for Binzhou rig models, provide intimate staff services for each user, and act as a good assistant for your investment.
◎Provide personalized service according to the special requirements of customers, provide drilling technology consulting services for complex geological conditions, freely train technicians for users, and provide extended services beyond key engineering information and operator training.
Main functions of drilling:
1. Obtain underground physical data and obtain core, cuttings, oil, water, natural gas, etc. from the bottom of the well.
2. As a geophysical logging channel, obtain data on various geophysical fields of the rock formation, such as underground military fire tests.
3. As an artificial channel, observe the mineral, hydrological and geological structures in the stratum.
4. Comprehensive application, comprehensive exploration and acquisition, and the use of underground resources.
about Requirements for ordering services
With over 66 years of continuous experience building water well drilling rigs, BINZUAN rig is able to provide each customer with a rig custom tailored to his or her precise needs.Because many BINZUAN rigs have their own power source, rigs can be mounted to a customer's existing truck at our facility or we can ship the rig in skid form to the customer who can mount the rig to his existing truck or equipment.Complete engineering and technical support is provided by BINZUAN rig.
Every truck mounted drilling rig is engineered with our customers' needs in mind. Requests and suggestions from our customers for special features and drilling configurations have been incorporated into our entire product line.
Combined with truck mounted drilling rig craftsmanship, these innovations have helped BINZUAN rig produce a line of rigs that is unsurpassed in the industry for versatility and efficiency.
